AMX  |  SKU: JPK-1300

JPK1300 Jetpack 3x1 Switching, Transport, and Control Solution

$2,05370

🚚 Out of stock — usually ships in 5–7 business days.

Description

AMX Jetpack is ideal for K12 and other education applications as well as enterprise and hospitality venues needing affordable, multi-functional A/V support for classrooms and small-to-medium meeting spaces that could benefit from a bundled product offering 4K60 video transmission and switching, room and device control, audio amplification for voice lift, simplified web configuration and campus management.

Product Feature
  • 4K60, HDMI 2.0, and HDCP 2.2 Support – Supports video resolution up to 4K@50/60Hz 4:2:0, 10.2Gbps video bandwidth
  • USB-C and HDMI Video Inputs – Transmitter includes 2x HDMI and 1x USB-C video inputs
  • HDBT Distance Transport – HDBT transmits lossless and zero-delay video & audio up to 131ft/40m for 4K or 230ft/70m for 1080P via a Shielded Cat 6/6A/7 cable
  • USB Pass-Through – Built-in USB-C and USB-B Host 2x1 USB Hub with pass-through to simplify connectivity to smart boards
  • Audio Amplifier – Built-In 2x25W 4/8-ohm Amplifier
  • Comprehensive Audio Features– USB2.0 audio on USB-C input, Mic/Line Input, Line Output, HDMI Audio Extraction, ARC support, and Remote Mute
  • Power Over Cable (PoC) – A single power supply connected to the Receiver powers the entire solution
  • Included Campus Management Software– Jetpack Management Tool PC Software makes it easy to discover and manage all your AMX Jetpack kits on the same network
  • Simplified Room Control – Control the display or projector and a screen from built-in control ports on the RX or CEC

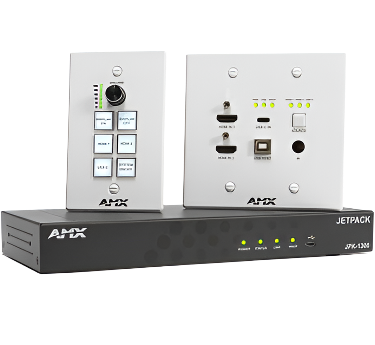

Kit includes:

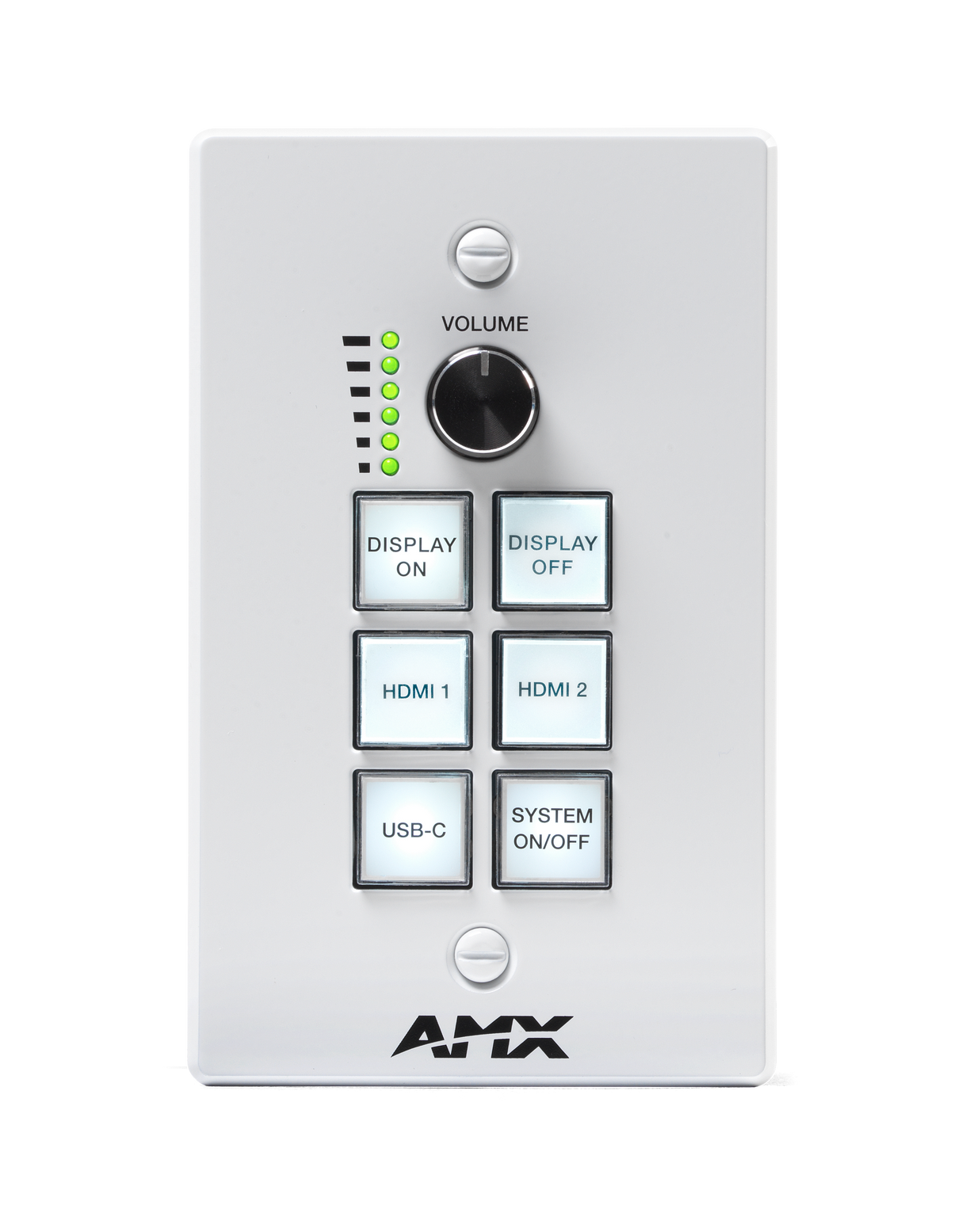

  • 6-Button Keypad with volume knob

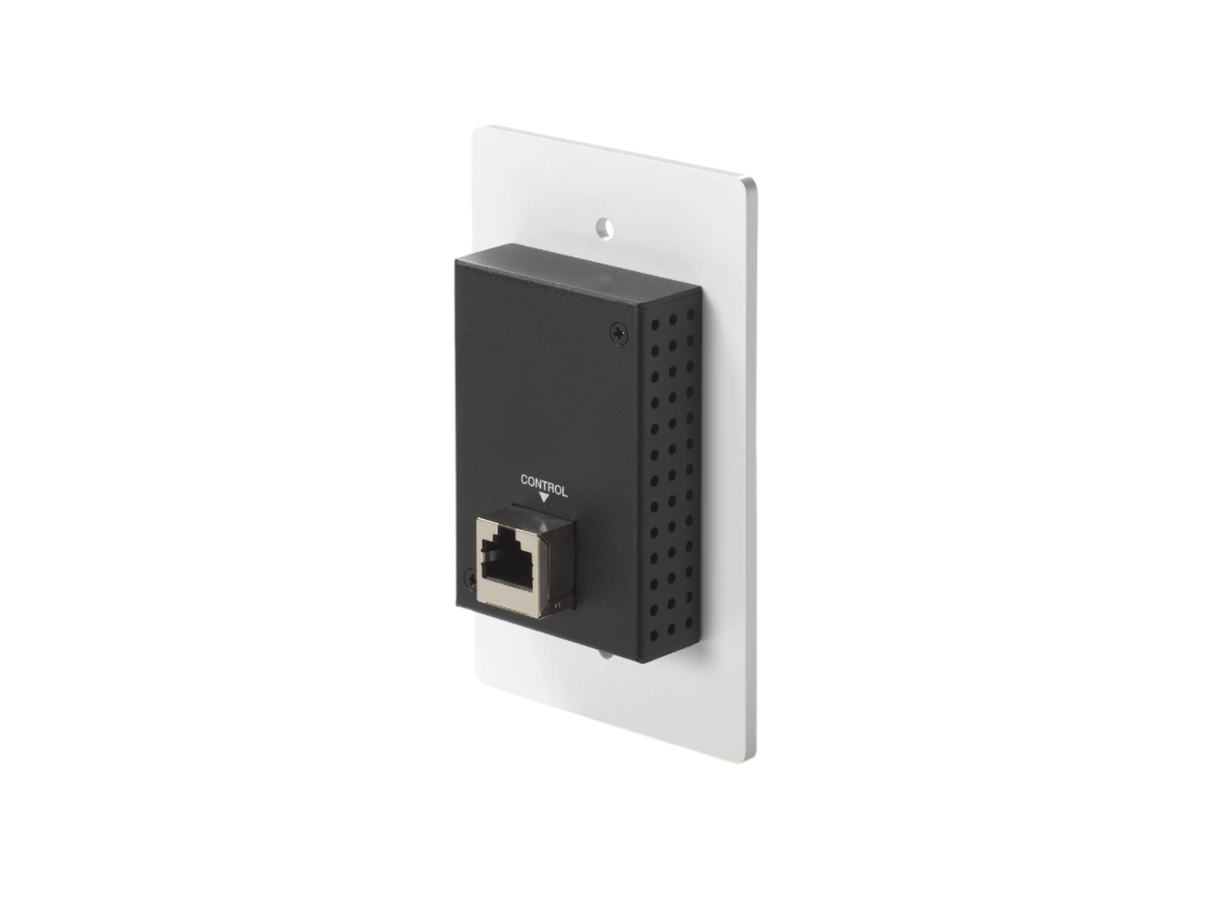

  • 3-Input Switching Wallplate Transmitter (2 HDMI, 1 USB-C) includes auto and manual switching modes, and support for transmission of uncompressed video and audio up to 40m/131ft at 4K or 70m/230ft at 1080P over shielded Cat 6/6A/7 cable

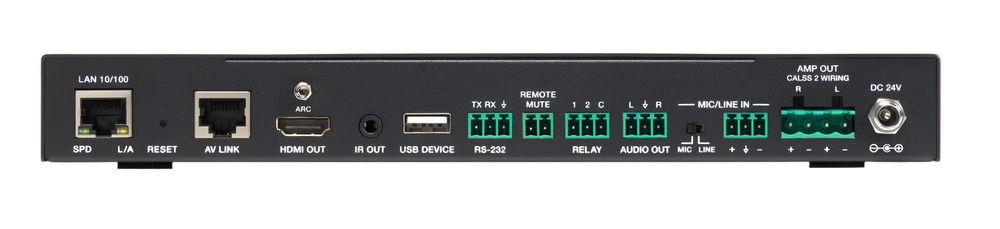

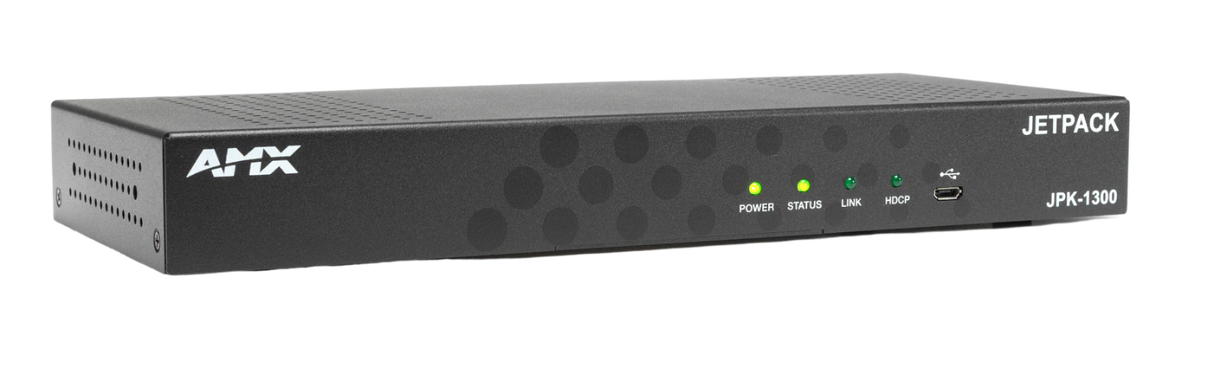

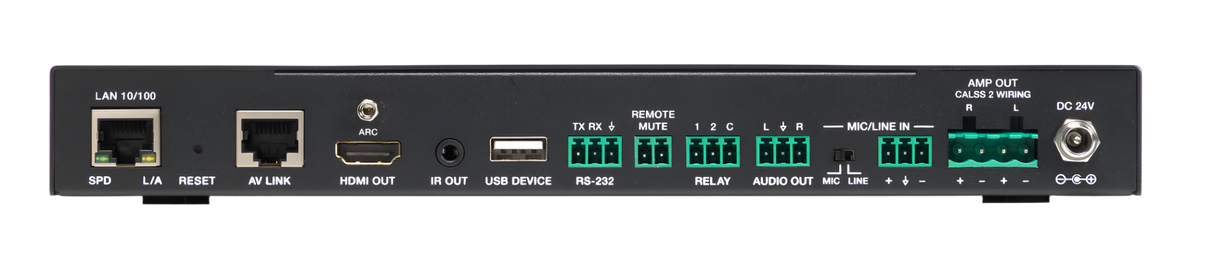

  • Multi-Function Receiver with Built-In 2x25W 4/8-ohm Amplifier, USB signal pass-through, RS232 control, Relay, IR, mic/line input, line out, remote mute, audio de-embedding, USB-AUDIO, ARC function, and CEC control (Embedded HDBaseTâ„¢ technology allows for full usage of HDMI and controls over Cat 6/6A/7 cable.)
  • Web Configuration for simplified installation
  • Jetpack Management PC tool included for campus wide room and device management

In the Box

• 1 x Wall-plate Transmitter (with Screws)
• 1 x Keypad (with Screws)
• 1 x Receiver
• 1 x Phoenix Connector (3.81mm, 2 Pins)
• 4 x Phoenix Connector (3.81mm, 3 Pins)
• 1 x Phoenix Connector (5.08mm, 4 Pins)
• 1 x IR Wideband Emitter Cable (1.5 meters)
• 2 x Mounting Bracket (with Screws)
• 1 x DC 24V/3.75A Power Adapter
• 2 x Power Cord (US and AU)

WARNING: This product may expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
  • Height
    0.87 in
  • Width
    2.76 in
  • Depth
    4.49 in
