Middle Atlantic  |  SKU: KD-DA1X2DC

U1V 1 RU Utility Rackshelf

$18900

🚚 Out of stock — usually ships in 5–7 business days.

Description

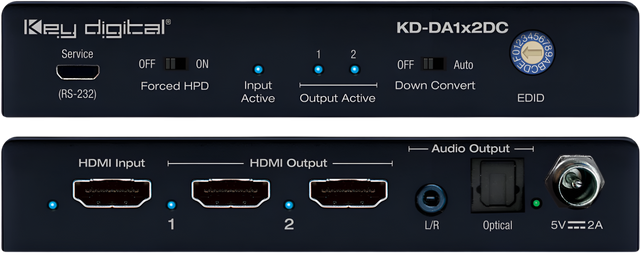

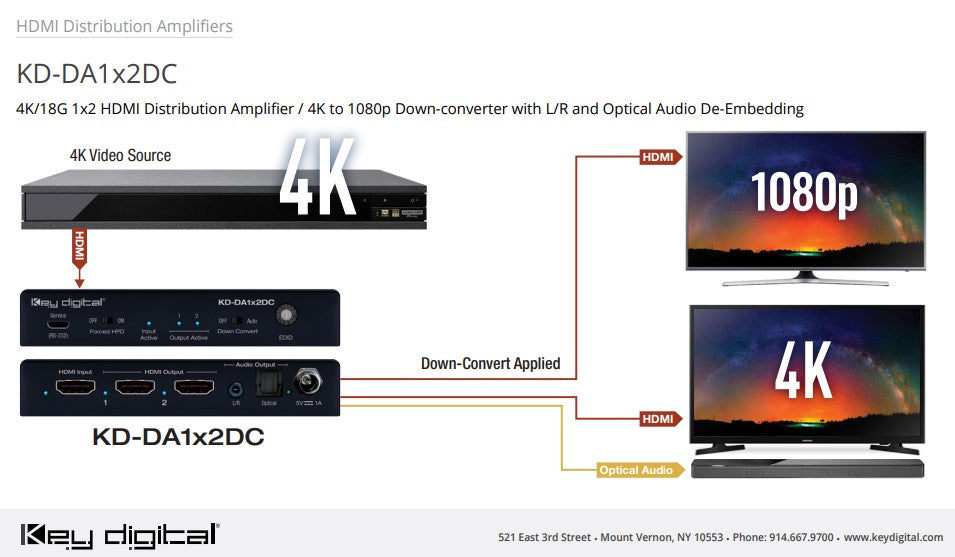

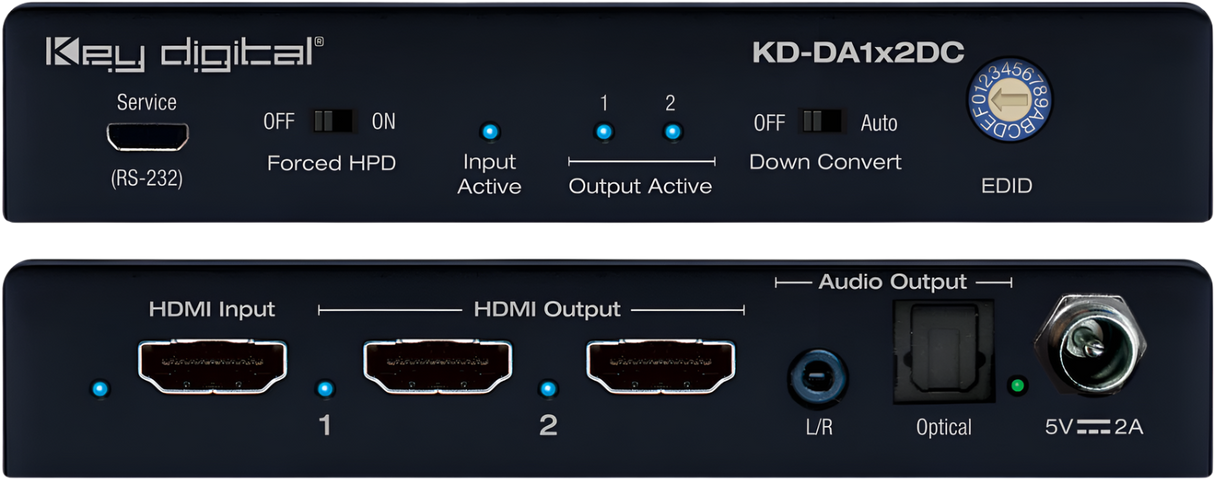

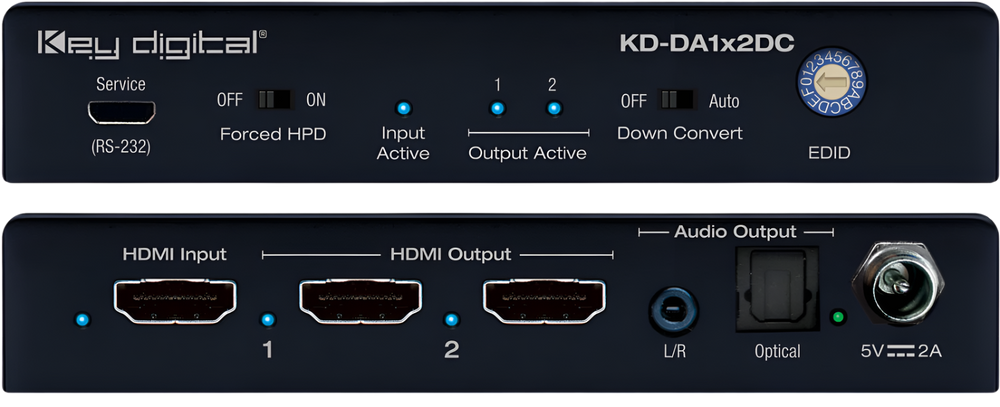

KD-DA1x2DC is a 4K 18G HDMI Distribution Amplifier with 4K to 1080p resolution down conversion option to enable a single HDMI video source to be displayed on multiple video displays, regardless of 4K or 1080p resolution support.

Product Feature
  • HDMI Signal Distribution: 1 HDMI source to 2 HDMI outputs/displays
  • Ultra HD/4K Support: 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4
  • (signals up to 18Gbps bandwidth)
  • HDCP Licensing: Fully licensed and compatible with HDCP 2.2
  • HDR10 and Dolby Vision®: More life-like images through a greater range of
  • luminance levels
  • Resolution Support: Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA,
  • SXGA, UXGA) up to 4096x2160p.
  • 4K to 1080p Down Convert: When enabled, resolution conversion is applied to
  • individual output(s) based on EDID from the connected display
  • Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
  • Audio De-embedding: Audio of the connected HDMI input is output at the digital
  • Optical and analog 3.5mm stereo connectors.
  • Full Buffer Systemâ„¢: Manages TMDS re-clocking / signal re-generation, HDCP
  • authentication to source & display, and EDID Control handshake
  • EDID Management: Internal library with 15 internal EDID handshakes including
  • 4K with HDR in addition to native EDID data copied from output/display 1
  • Digital Audio Format Support: DTS-HD Master Audioâ„¢, DTS:X®, Dolby® TrueHD,
  • Dolby Atmos®
  • CEC Disconnect: Prevents unwanted control of source
WARNING: This product may expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
  • Height
    3 in
  • Length
    11 in
  • Width
    9 in
  • Weight
    0 lb
