Atlas IED  |  SKU: TSD-MIX41

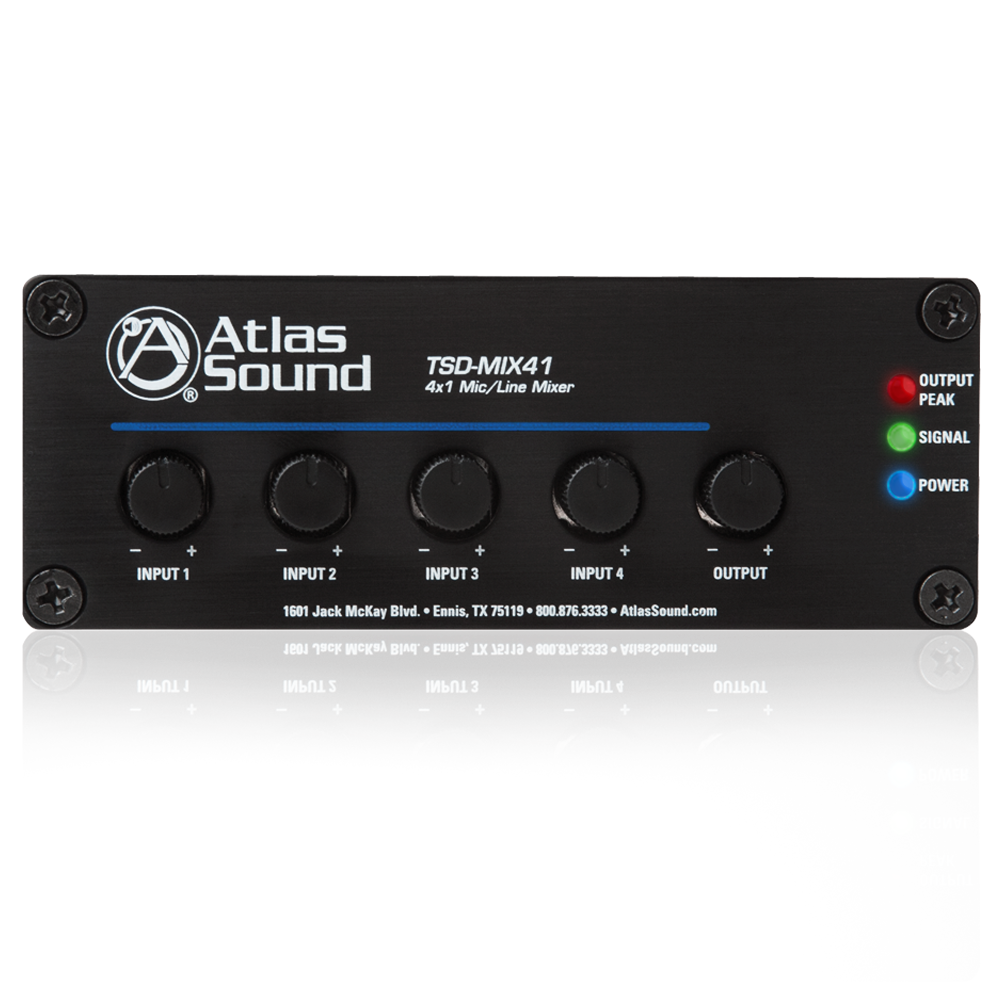

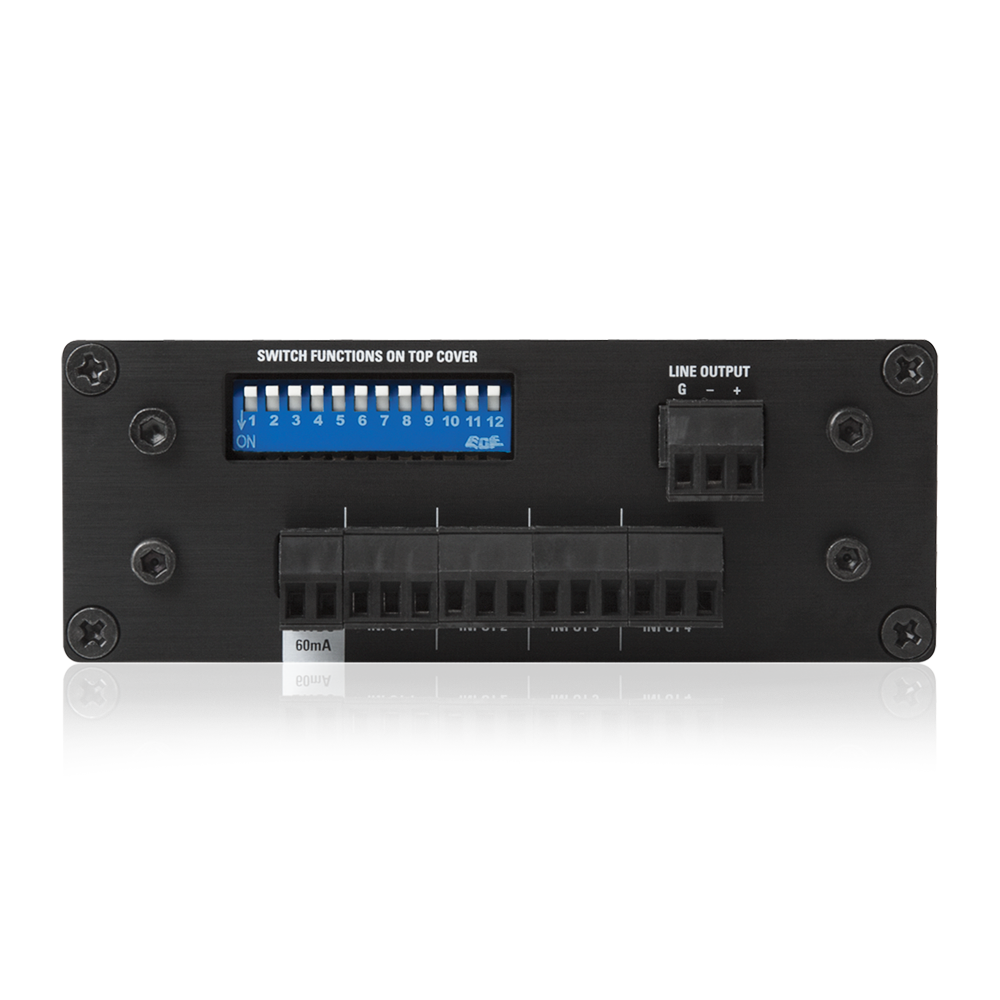

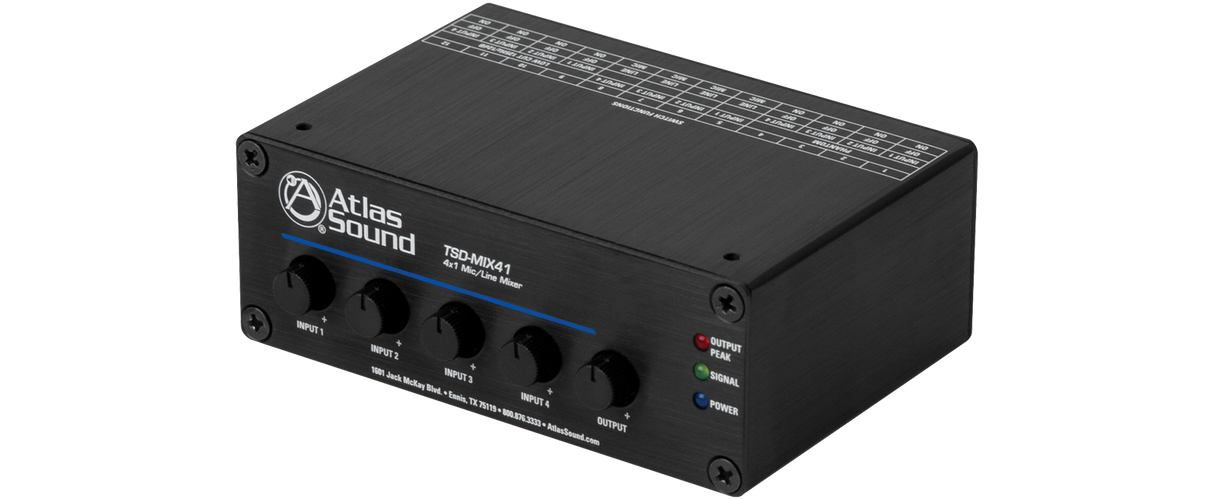

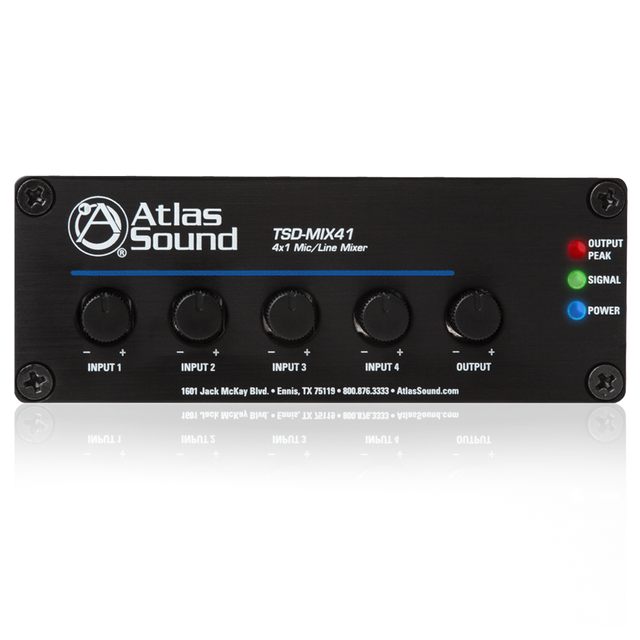

TSDMIX41 4 x 1 Mic/Line Mixer

$39199

🚚 Out of stock — usually ships in 5–7 business days.

Description

The TSD-MIX41 4x1 mic/line mixer is ideal for applications where multiple mic or line sources need to be submixed or summed. In-house of worship applications, the TSD-MIX41 is especially useful for combining similar sources, such as choir microphones, to a single mixer channel. The unit also works well as a stand-alone mic/line mixer that can be easily interfaced with AtlasIED amplifiers. Other applications include restaurants, conference rooms, and schools.

Power Supply Sold Separately

Product Feature
  • Four (4) Balanced Mic/Line Inputs
  • Four (4) Professional Grade Microphone Preamps with Switchable 24V Phantom Power
  • Up to 50dB Mic Gain Per Input
  • 12dB/Octave Low Cut Filter @ 125Hz
  • Balanced Line Output
  • Input Peak & Signal Indicator LED's
  • High Gain Output for Driving Long Balanced Lines
  • Separate Ground Connections
  • Removable Phoenix Style I/O Connectors
  • Security Covers Included for All Front Panel Controls
  • Energy Efficient
WARNING: This product may expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
  • Height
    1.5 in
  • Length
    2.75 in
  • Width
    4 in
