Lowell Manufacturing  |  SKU: MA60

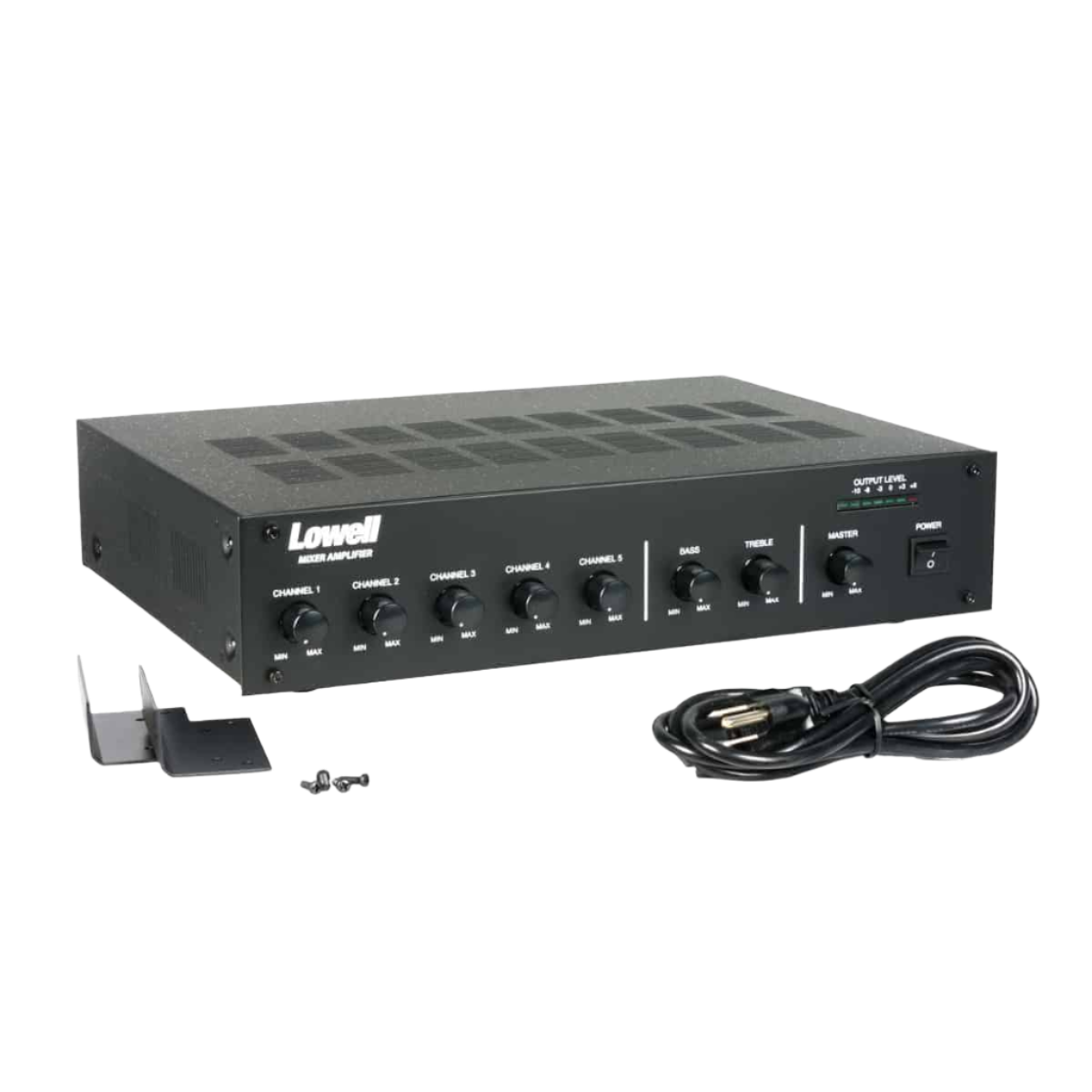

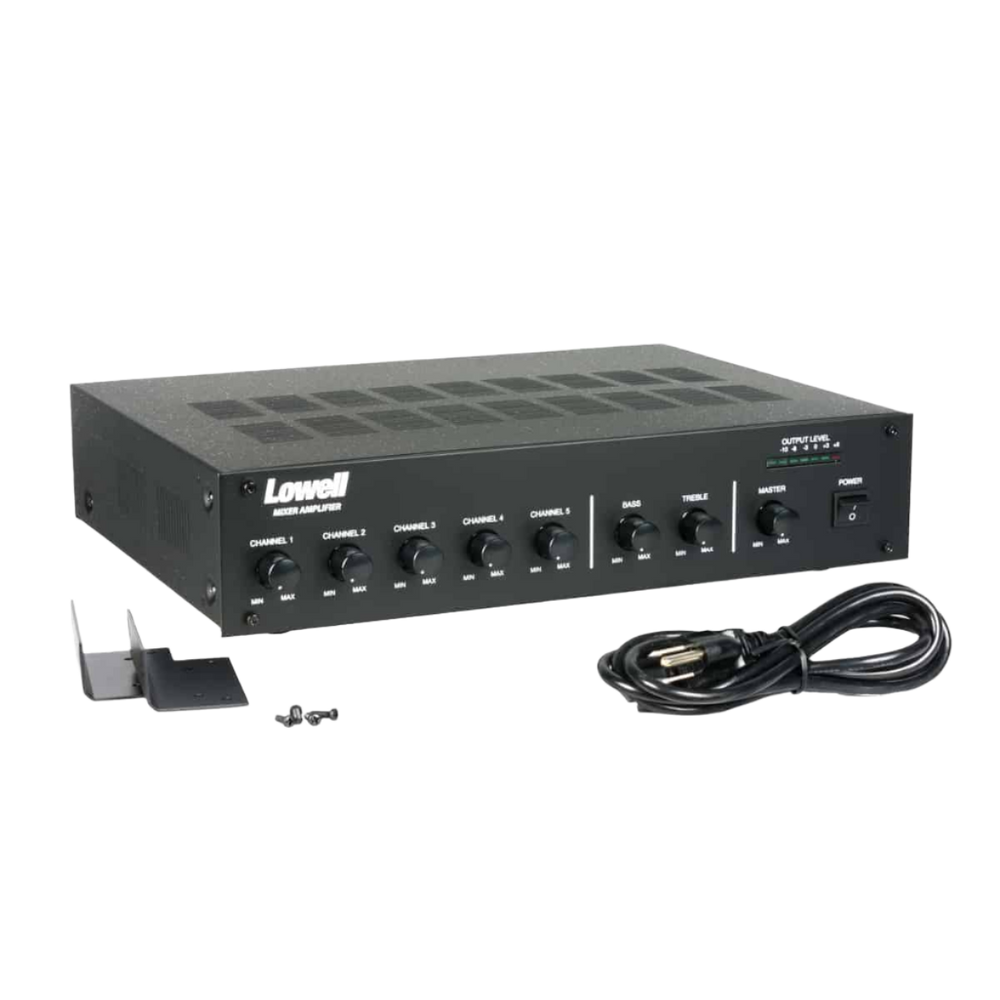

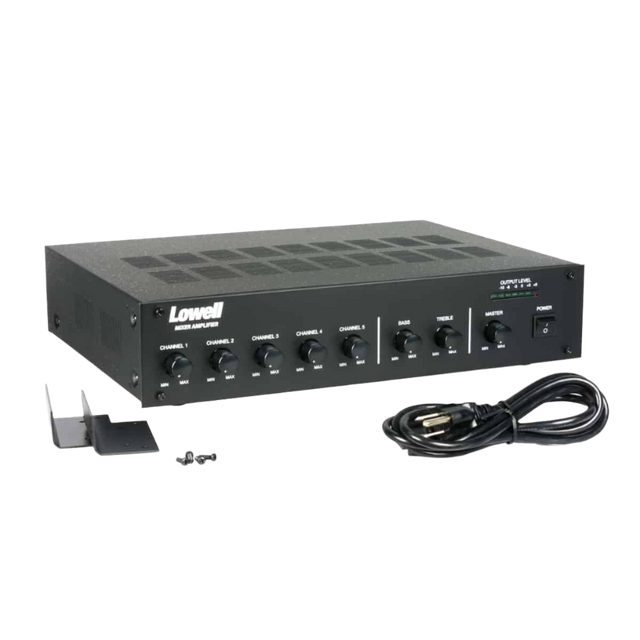

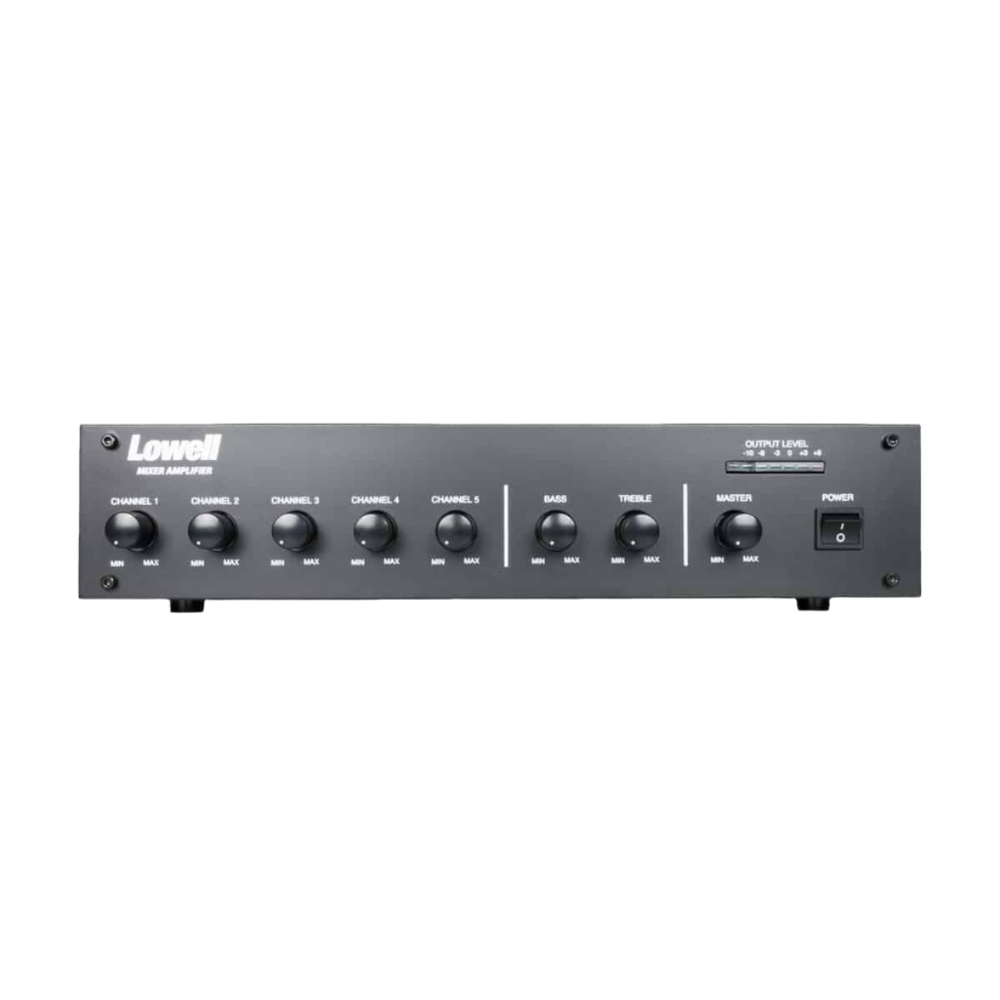

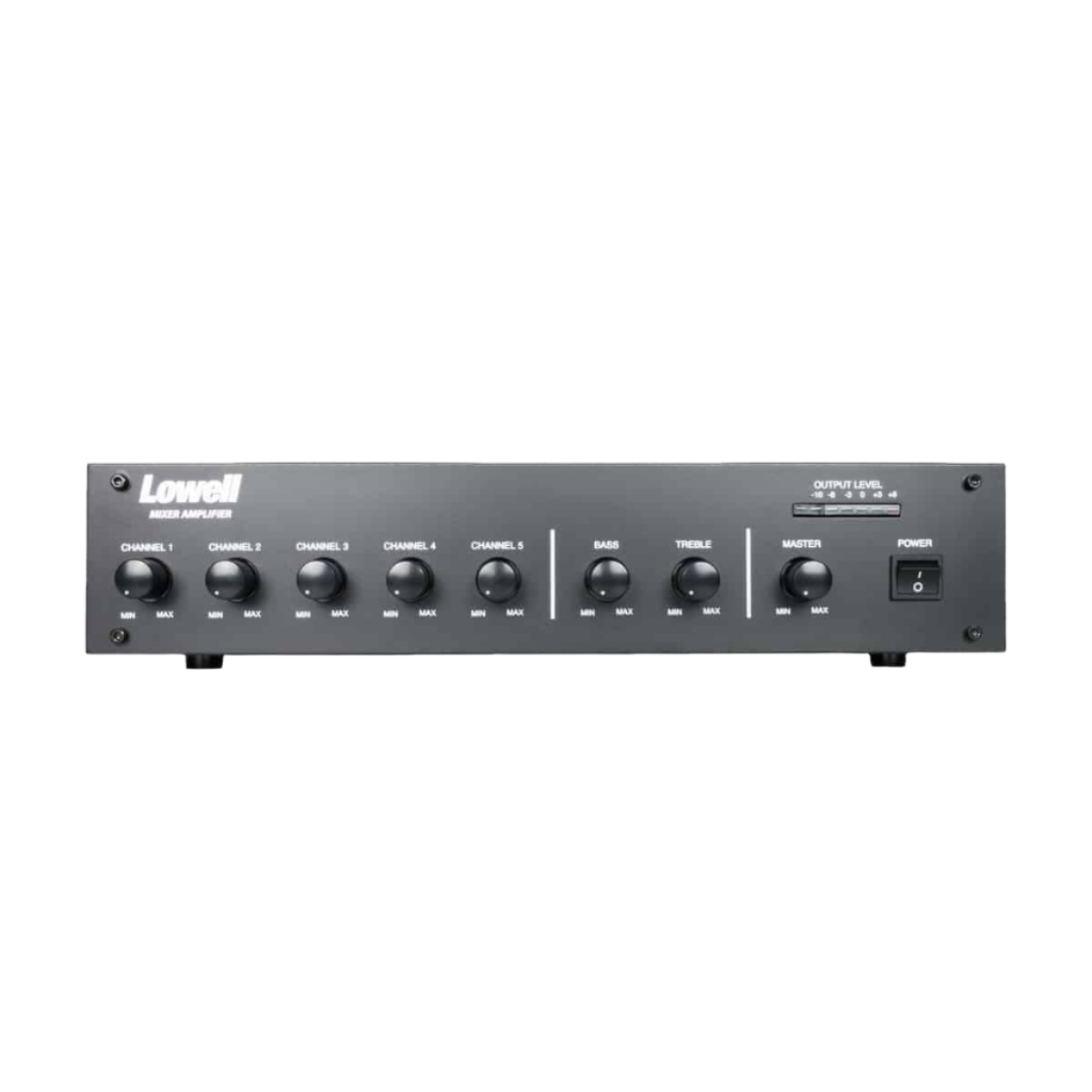

MA60 60W Mixer Amplifier

$93139

šŸšš Out of stock ā€” usually ships in 5ā€“7 business days.

Description

Mixer with 60W amplifier is powered via switchable 115 or 230 VAC @50/60Hz or 24VDC. It features five channel volume controls, treble and bass controls, master volume control, main power switch, and LED display bank for output level.

Includes brackets for standard 19-inch E.I.A. rack.

Ā

Product Feature
  • Powered via switchable 115 or 230 VAC @50/60Hz or 24VDC
  • Five channel volume controls
  • Treble and bass controls
  • Master volume control
  • Main power switch
  • LED display bank for output level
  • Brackets for standard 19ā€³ E.I.A. rack
  • Five input channels, switchable from XLR mic connector to AUX input dual combining RCA-phono connectors.
  • 4W, 8W, 25V, and 70V speaker outputs at a screw terminal strip.
  • AUX-6 input channel with dual combining RCA phono connectors and rear level control.

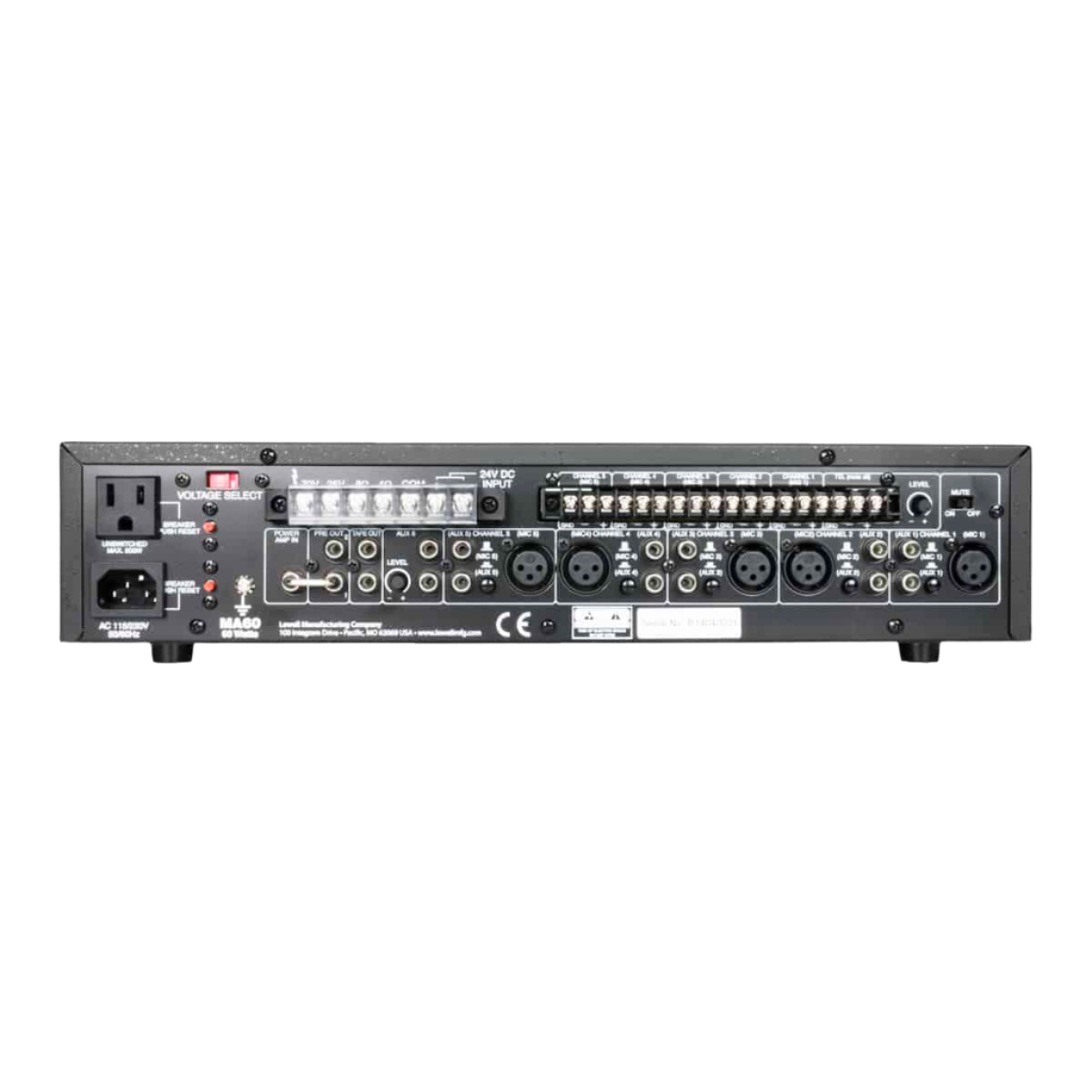

  • Main AC input protected by circuit breaker on rear panel.
  • Unswitched (always on) AC outlet in rear protected by separate circuit breaker
  • Mic-1 mutes channels 3ā€“6.
  • Separate telephone input with level control in rear mutes all other inputs.
  • Dual RCA/phono parallel tape-out connectors and dual RCA-phono parallel PRE-OUT (preamp out) connectors in rear.
  • Chassis-ground termination screw in rear

In the Box

Rack Mounting Brackets

WARNING: This product may expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
  • Height
    6 in
  • Length
    24 in
  • Width
    18 in
  • Weight
    20 lb
