Atlas IED  |  SKU: FAP62T

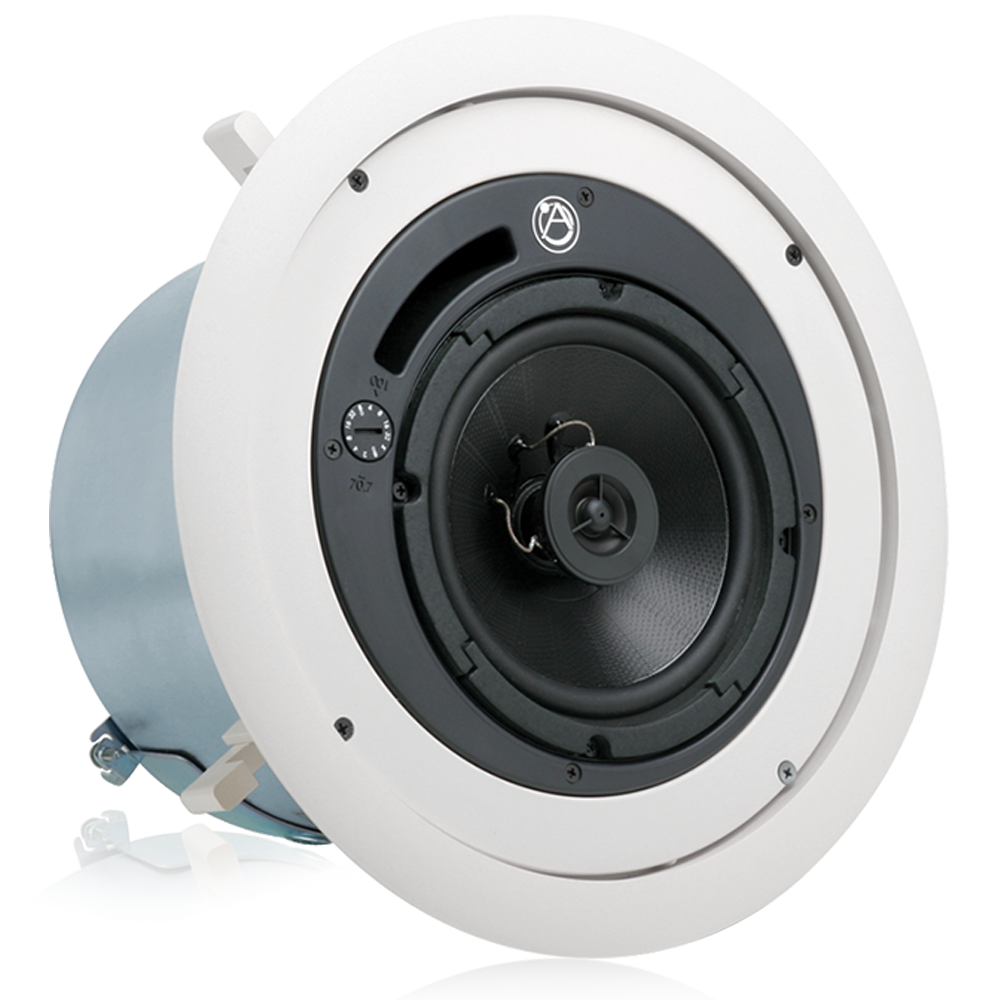

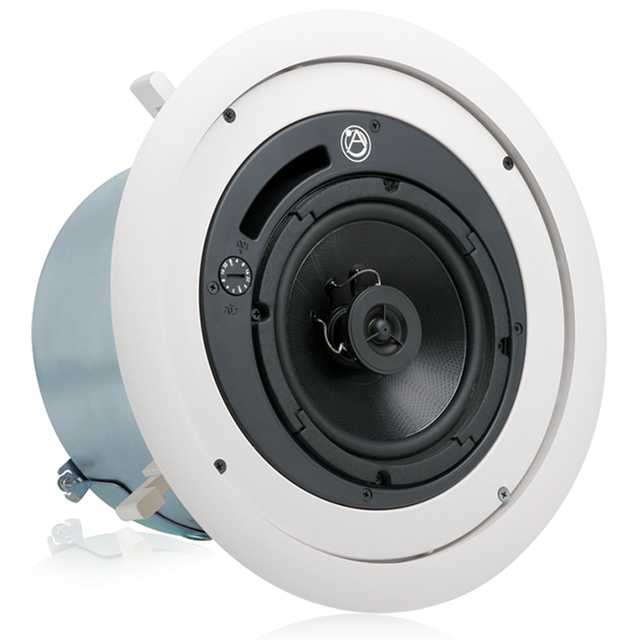

FAP62T 6" Speaker Coaxial In-Ceiling System 70/100V (Pair)

Regular price $44798

✅ In stock — usually ships the same day!


Description

This pair of white Atlas Sound FAP62T Strategy II Series 6" 32W high-sensitivity coaxial ceiling speakers with low-saturation 70.7V / 100V transformers offers clear reproduction of voice and music signals for use in offices, classrooms, and retail shops. The 6" polypropylene cone-type drivers and coaxially mounted tweeters are housed in sturdy metal enclosures, which are tuned and ported for extended low-frequency range. Each FAP62T yields a frequency response of 63 Hz to 20 kHz, with adjustable power output settings ranging from an 8-Ohm transformer bypass to a maximum of 32W at 70.7V. The front-mounted tap selector switch is concealed and protected by a press-fit steel grille. System wiring is accommodated by the detachable 4-pole Euroblock connector, located beneath a conduit access panel. Two C-Ring / V-Rail tile bridge mounting systems—one for each speaker—are included for easy installation in drop tile or sheetrock ceilings.

Product Feature

  • Priced and Sold as Pair
  • 4 Pole Detachable "Phoenix" Style Connector Allows Easy Pre-Wiring and is Convenient for Daisy Chaining Additional Strategy Full Range Speakers or Subwoofers
  • Easy Installation in Drop Tile or Sheetrock Ceilings via C-ring/V-rail Tile Bridge and "Dog Leg" Mounting System (Included)
  • Enhanced Quality 70.7V/100V Internal Transformers Minimize Insertion Loss and Maintain Low Frequency Response While Providing increased Output for Higher SPL Applications
  • Extended Low Frequency Response from the 285 Cubic Inch Optimally Tuned and Ported Deep Drawn Galvanized Steel Enclosure
  • Front Mounted Tap Selector Switch for Easy System Tuning Adjustments Includes Transformer Bypass Setting for 8 ohm Direct Coupled Operation

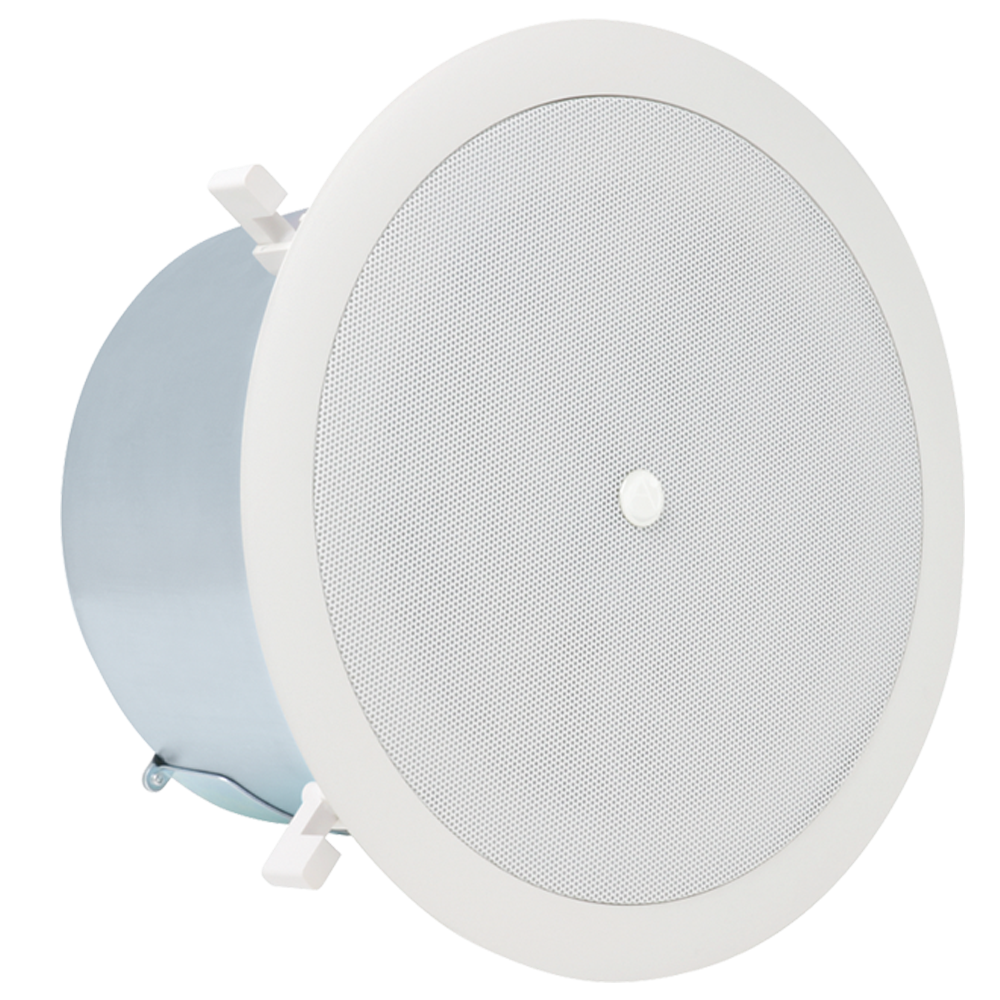

  • "Press Fit" Grilles Blend Better into Contemporary Architecture
  • Unique "Trap Door" Input Section Allows for Through Conduit Runs with Rigid or Flex Conduit
WARNING: This product may expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
  • Height
    15 in
  • Length
    30 in
  • Width
    15 in
  • Weight
    15 lb
