Key Digital  |  SKU: KD-DA1x4DC

KD-DA1x4DC Distribution Amp 4K 18G 4 Output HDMI Splitter

$27900

✅ In stock — usually ships the same day!

Description

KD-DA1x4DC is a 4K 18G HDMI Distribution Amplifier with 4K to 1080p resolution down conversion option to enable a single HDMI video source to be displayed on multiple video displays, regardless of 4K or 1080p resolution support.

Product Feature
  • Replacement for KD-DA1X4X

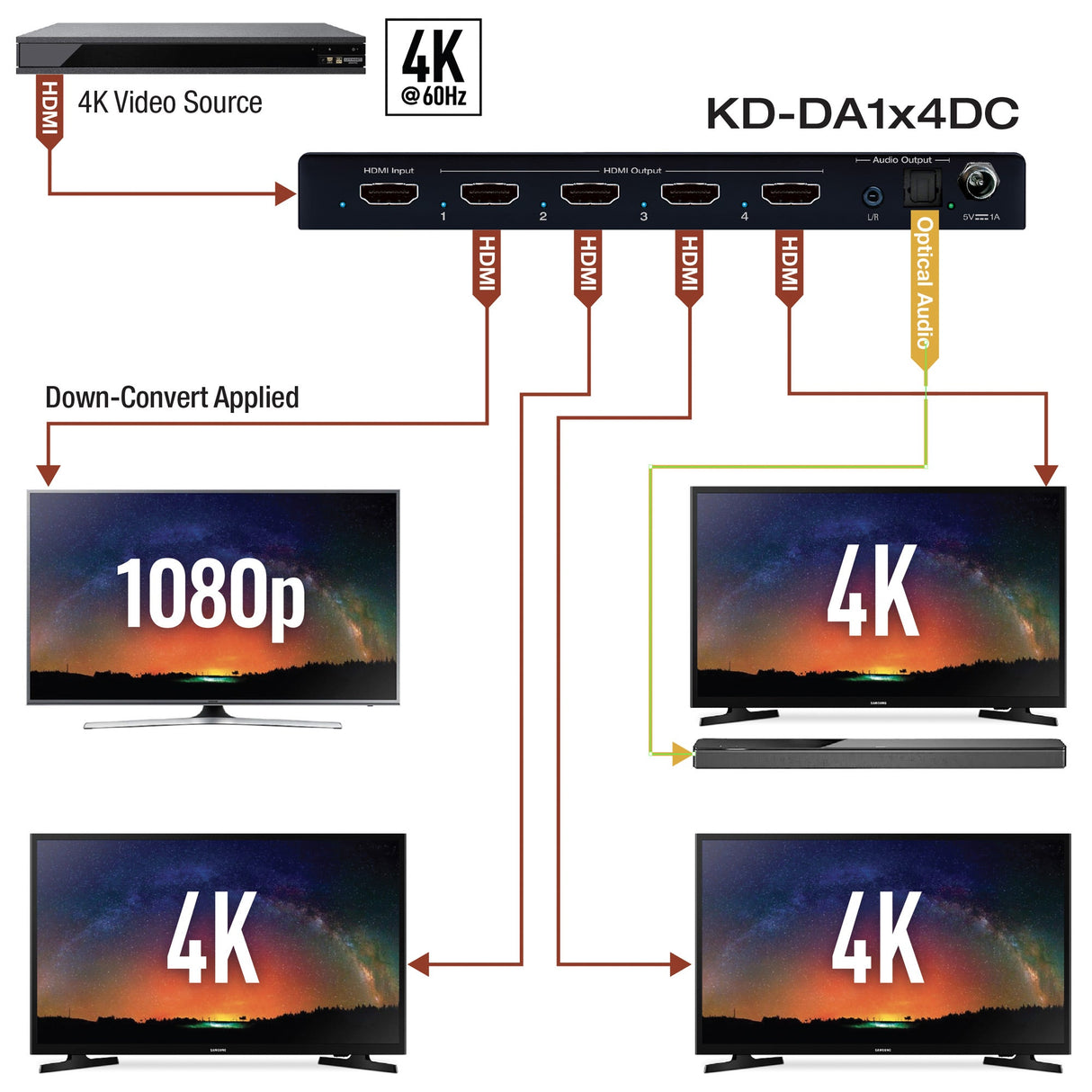

  • Feeds 1 video source to 4 HDMI displays
  • 4K to 1080p down-conversion for integration with legacy displays
  • 4K HDMI signals up to 18Gbps with HDR, HDCP 2.2, and surround audio up to Dolby® 7.1, Atmos / DTS-HD
  • De-embeds audio for ease of integration with audio systems and soundbars
  • HDMI Signal Distribution: 1 HDMI source to 4 HDMI outputs/displays
  • Ultra HD/4K Support: 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
  • Resolution Support: Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA) up to 4096x2160p
  • 4K to 1080p Down Convert: When enabled, resolution conversion is applied to individual outputs(s) based on EDID from the connected display
  • Audio De-embedding: Audio of the connected HDMI input is output at the digital Optical and analog 3.5mm stereo connectors
  • Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication to source & display, and EDID Control handshake
  • EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from output/display 1
  • Surround Audio Support: DTS-HD Master Audio™, DTS:X®, Dolby® TrueHD, Dolby Atmos®
WARNING: This product may expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
  • Height
    11 in
  • Length
    4 in
  • Width
    7 in
  • Weight
    2 lb
  • Depth
    5.87 in
