Evolution  |  SKU: EVEXHDB1

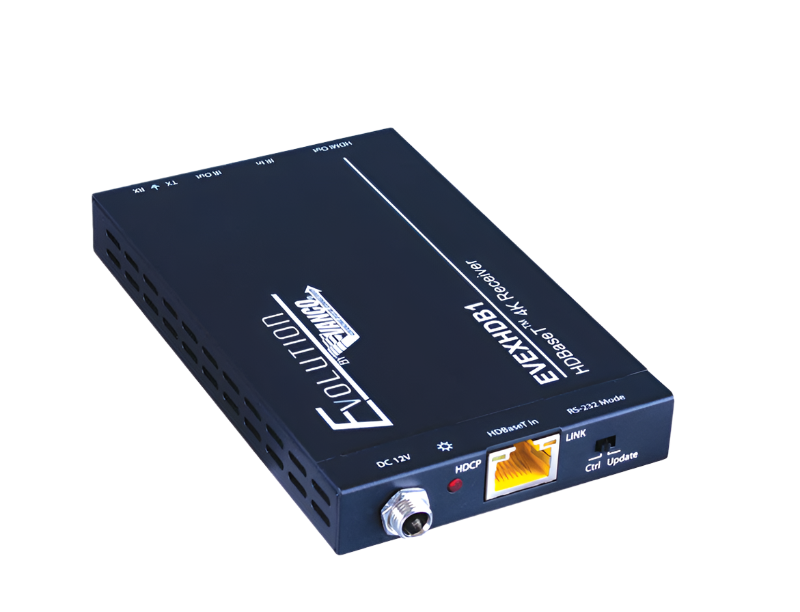

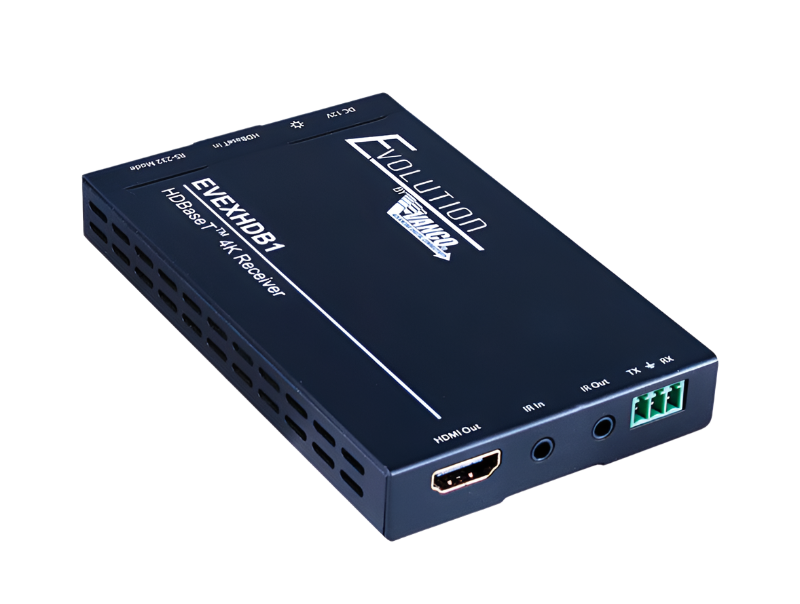

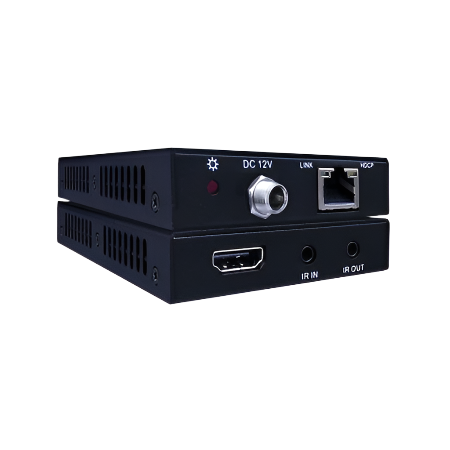

EVEXHDB1 HDBaseT™ Extender

$48999

🚚 Out of stock — usually ships in 5–7 business days.

Description

Product Feature
  • Features HDBaseT Technology- optimized for whole-home or commercial distribution of uncompressed high-definition signals at more than twice the distance of standard HDMI cables without degradation

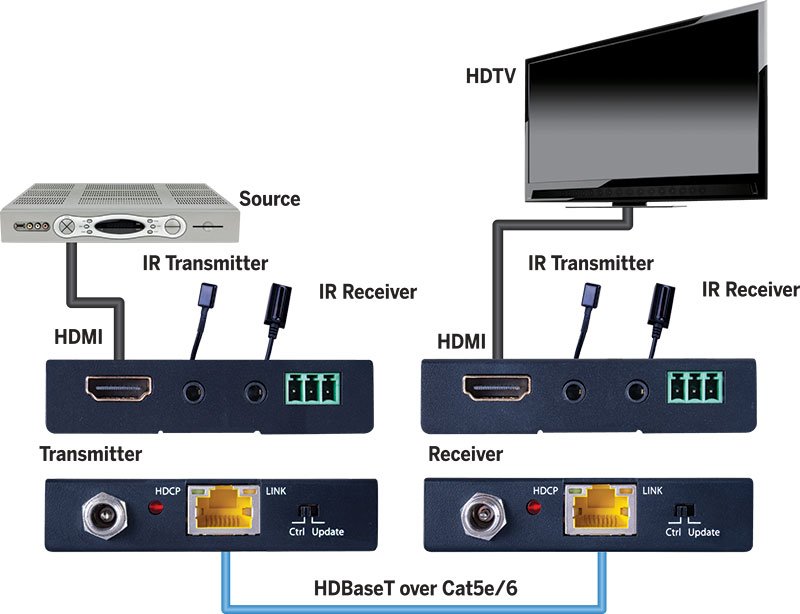

  • HDBaseT Extender can connect uncompressed full HD digital video and audio through a single 230ft/70m Cat5e/Cat6 cable
  • Features Power over Cable (PoC) Technology which transmits power over Cat5e/6- allowing for either Transmitter or Receiver to be powered without the use of a power supply. The result is an easy and flexible installation with low maintenance
  • Transmission Range: Extends 1080p resolutions up to 230ft (70m) over a single Cat5e/6 cable and 4K@60Hz- 4:2:0 color subsampling up to 131ft (40m)
  • Bi-directional IR control
  • High Bandwidth: 10.2Gp
  • HDCP 2.2 compliant
  • CEC Support
  • Slim and compact design
  • Power Supply: DC 12V

In the Box
  • EVEXHDB1 (TX & RX)
  • (1) IR Blaster (TX)
  • (1) IR Receiver (RX)
  • (1) DC 12V in line power supply
  • Mounting Hardware
WARNING: This product may expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
  • Height
    2 in
  • Length
    10 in
  • Width
    7 in
  • Weight
    3 lb
  • Depth
    4.7 in
