Genesis  |  SKU: 33201001

22/1P Stranded Shielded Plenum Reel

$56700

✅ In stock — usually ships the same day!

Length

Description

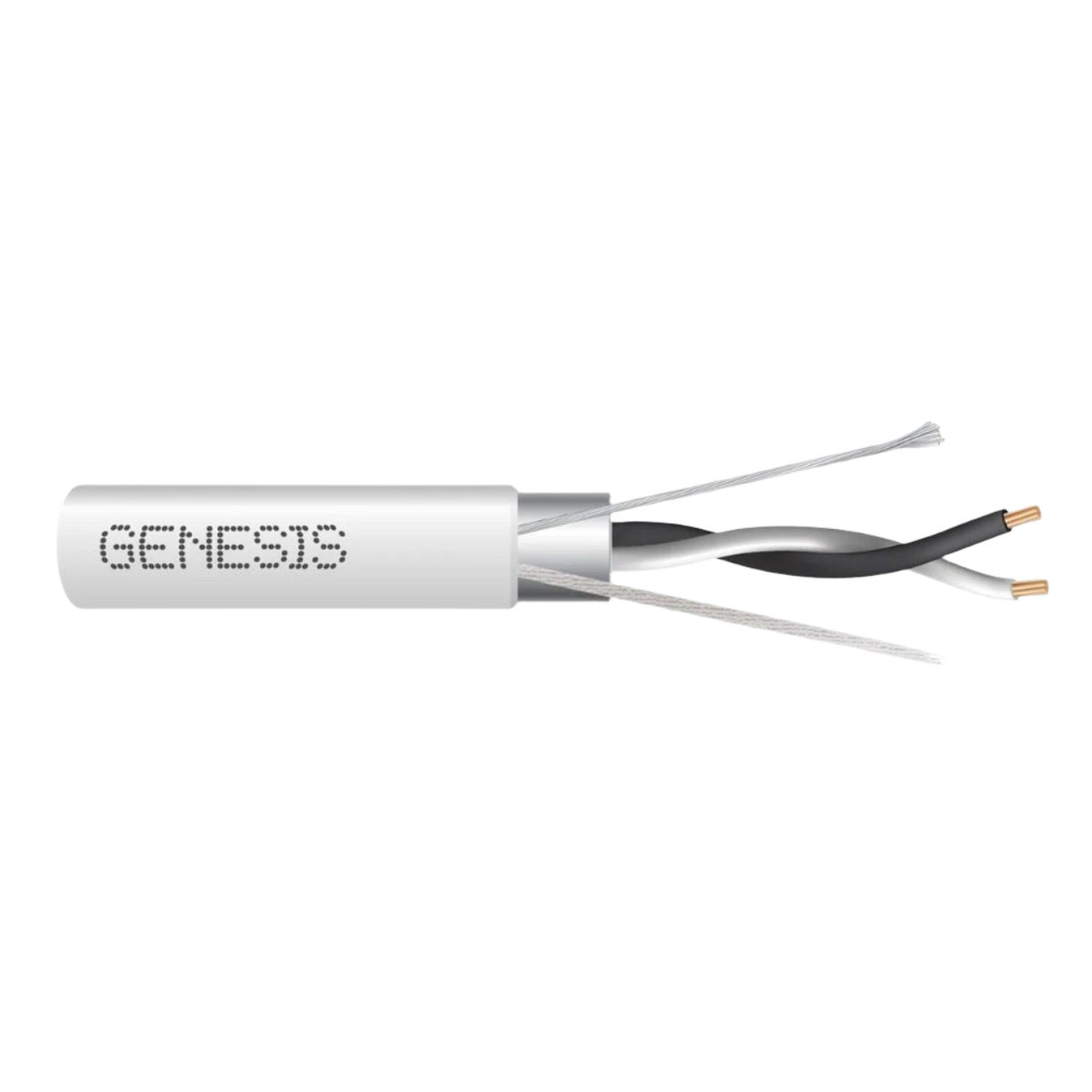

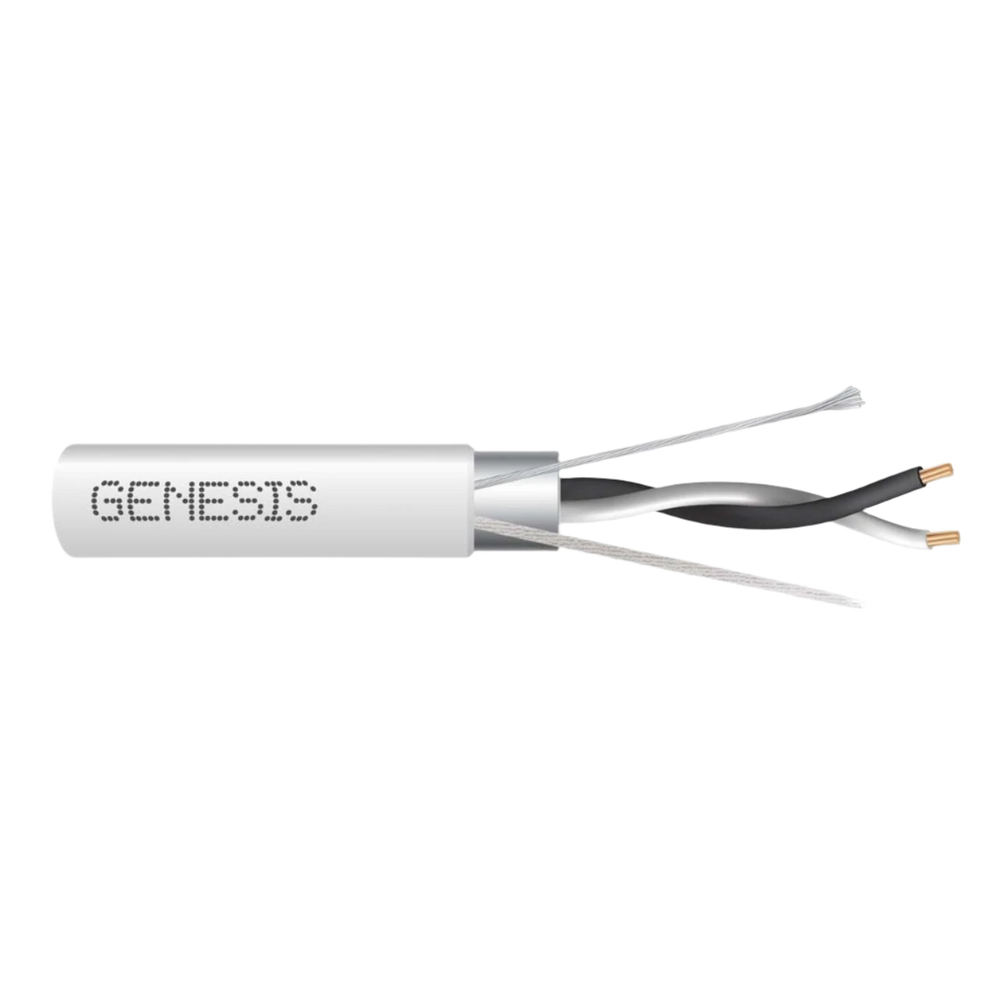

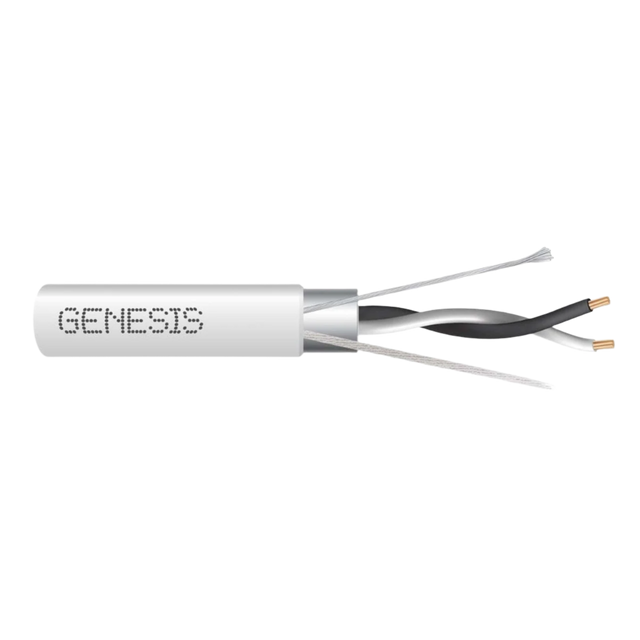

This Genesis® cable features a stranded 22 AWG copper conductor-pair, an overall foil shield with a drain wire, and a plenum rating. Choose this cable for high-speed data transmission for building automation, EIA-485, BACnet, and other communication systems.

Product Feature

Cable Rating: Plenum, FT6
Cable Listing: CL3P, FPLP, CMP, FT6
Wire Gauge (AWG): 22
Solid or Stranded: Stranded
Number of Strands: 7
Conductor Material: Bare Copper
Number of Conductors: 2
Number of Pairs: 1
Conductor Insulation Material: FEP
Insulation Colors: Black, White
Shielding: Yes
Shielding Type: Overall Foil
Rip Cord: Yes
Jacket Material: Plenum PVC
Nominal Outer Diameter: 0.166 in.
Rated Voltage (Max): 300 Volts
DC Resistance (Max): 16.9 Ohms / 1000 ft. at 20 °C
Capacitance (Nominal): 12.5 pF / ft.
