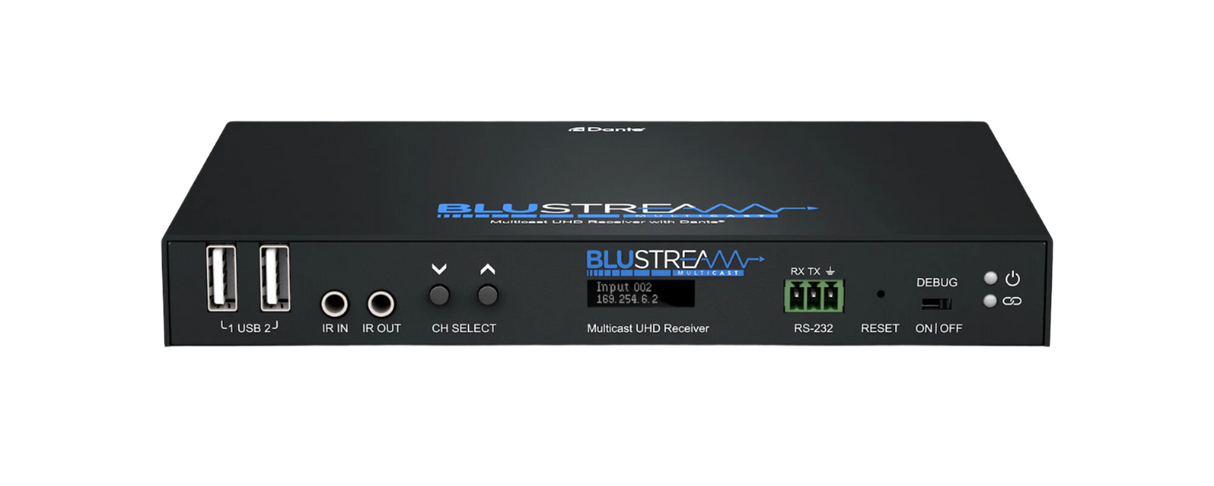

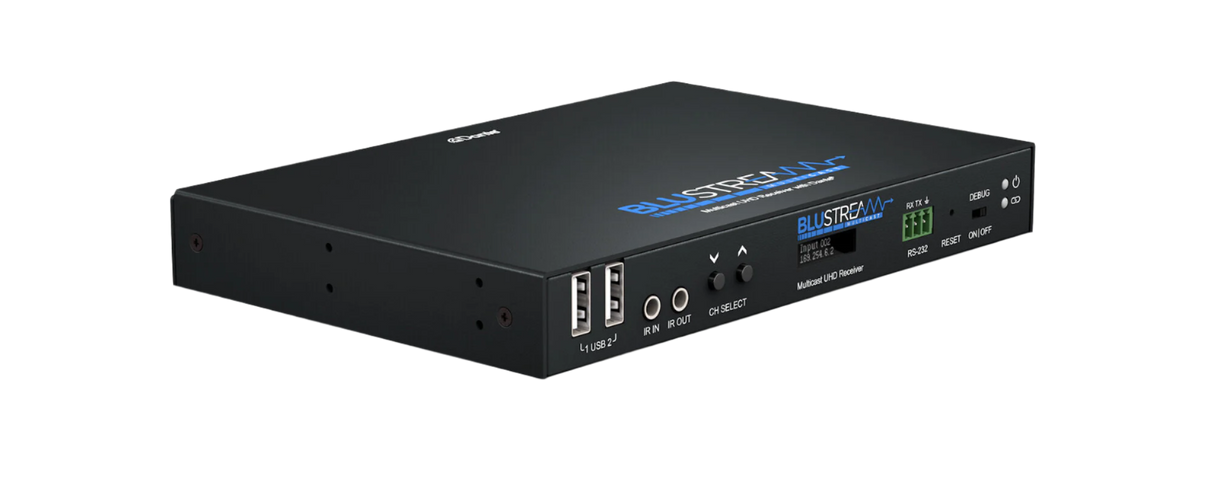

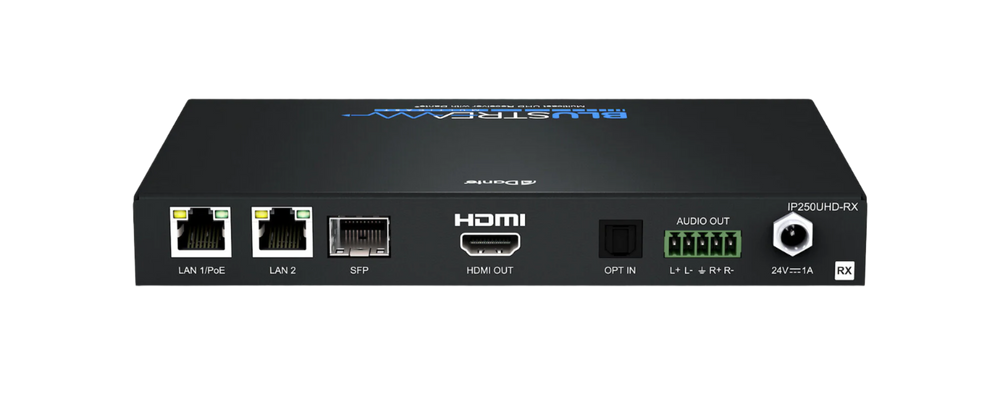

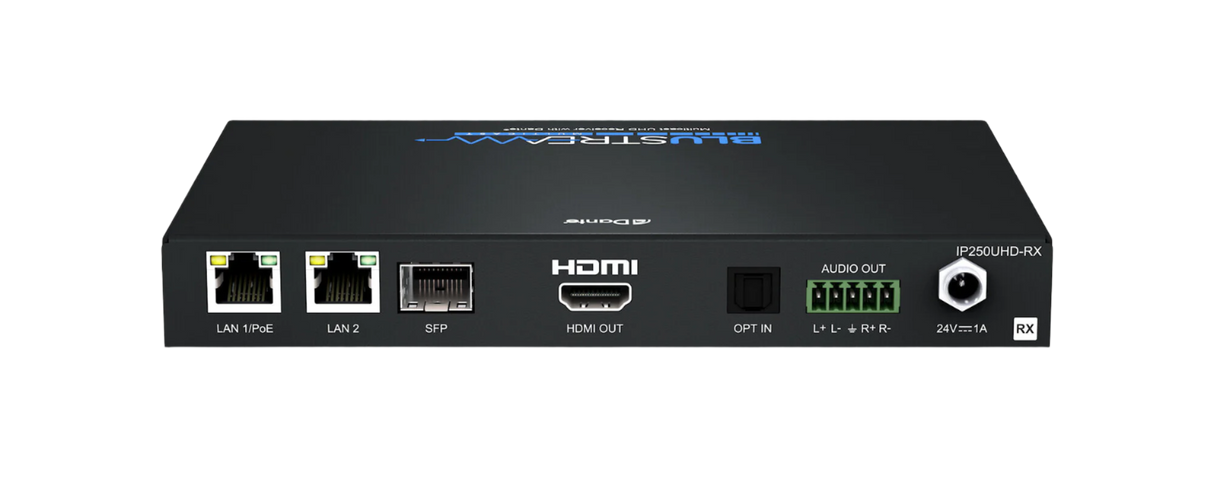

IP250UHD-RX IP Multicast UHD Video Receiver over 1Gb Network featuring Dante Integration

• Advanced UHD video over 1Gb Managed Network
• Operates as a stand-alone system, or together with existing IP200UHD products
• Virtually unlimited system size
• Extends HDMI and Dante up to a distance of 100m over a single CAT cable
• Dual RJ45 network ports configurable for independent or combined HDMI and Dante signal distribution
• SFP port for independent or combined HDMI and Dante signal distribution over a single fibre cable
• Video up-scaling and down-scaling
• Supports up to 4K 30Hz UHD video output
• In-built 2ch Dante transmitter for breakout of audio from HDMI source or local analogue audio input
• In-built 2ch Dante receiver for embedding of audio onto the HDMI signal or breakout to local analogue audio output
• Optical (S/PDIF) audio input for conversion of a stereo digital audio format into a Dante audio system
• Analogue L/R audio outputs support both balanced and unbalanced audio signals
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
• Advanced signal management for independent routing of IR, RS-232, USB/KVM*, audio and video
• OLED front panel display for advanced system information and manual configuration
• PoE (Power over Ethernet) to power Blustream Multicast products from a PoE switch
• HDCP 2.2 compliant with advanced EDID management
• Local 24V 1A power supply should Ethernet switch not support PoE (not included)
• Features 4 operational modes:- Matrix distribution (requires 1Gb network switch)- Video wall (requires 1Gb network switch)- One-to-one HDMI extender (no network switch required)- One-to-many HDMI extender (no network switch required)

1 x IP250UHD-RX
1 x IRR IR Receiver
1 x IR1 IR Emitter
1 x Serial 3-pin phoenix connector
1 x Mounting kit
1 x Quick Reference Guide
