DynaCord  |  SKU: MXE5

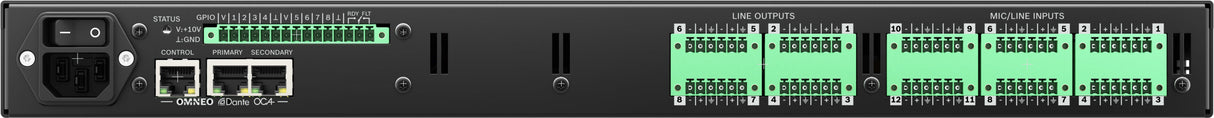

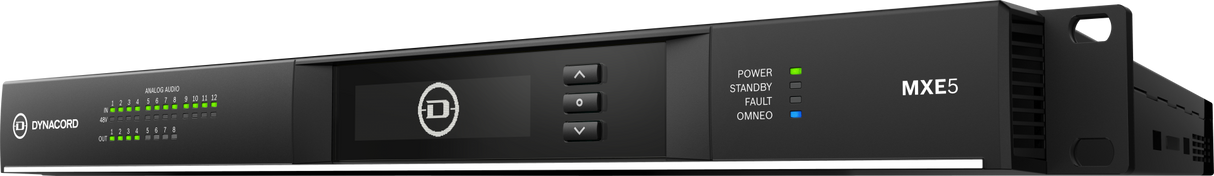

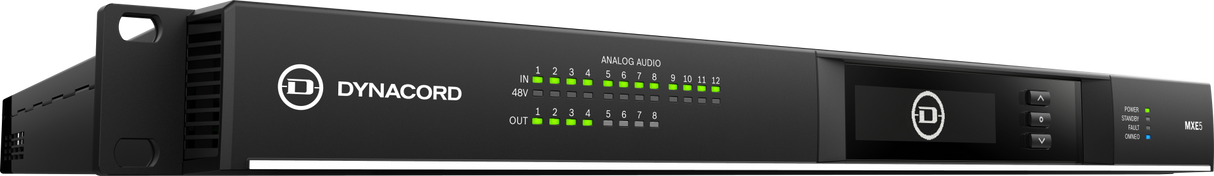

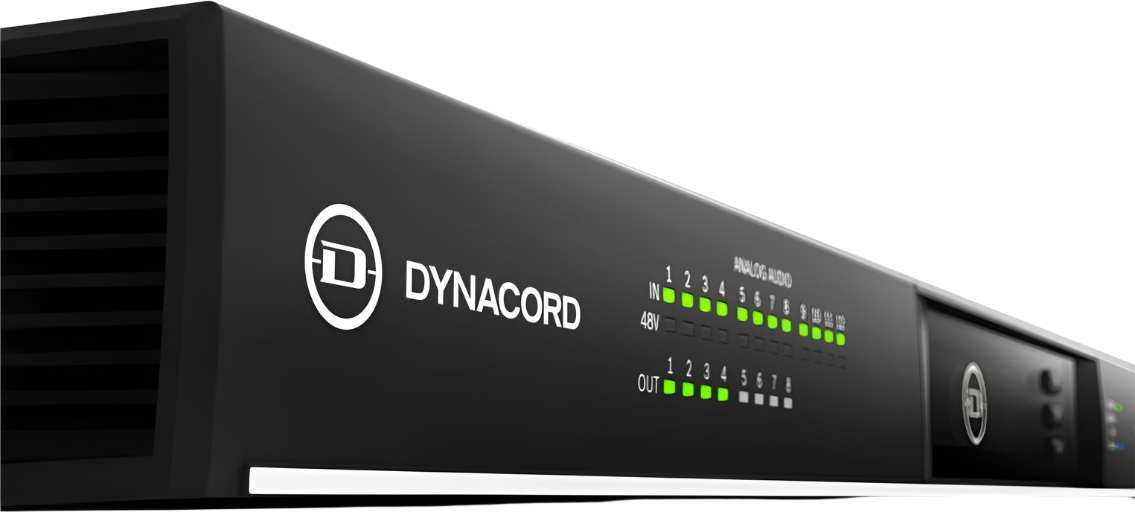

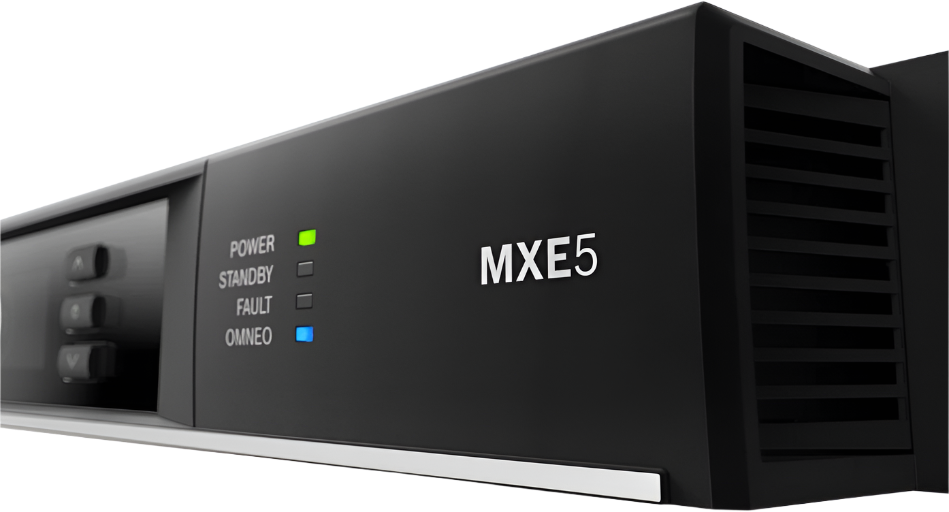

MXE5 Matrix Mix Engine

$3,85300

šŸšš Out of stock ā€” usually ships in 5ā€“7 business days.

Description

The MXE5 is the first member of the MXE matrix mix engine series. The performance audio matrix with 12 analog mic/line inputs, 8 line outputs and 24x24 Dante channels provides configurable matrix blocks with up to 3840 cross-points and up to 256 internal signal-paths. The configuration allows the choice between a fixed or a free DSP configuration. At the same time, the MXE5 serves as a control center and communications hub for system devices and IP-based peripherals providing comprehensive supervision of system-wide commands.

Ā

Product Feature
  • Matrix size: 36 x 32
  • Sampling rate: 48 kHz /96 kHz
  • Dante in/out: 24/24
  • Analog inputs: 12 mic/line
  • Analog outputs: 8
  • Max. input/output level: + 22 dBu
  • Signal to noise ratio (inputs/outputs): > 118 dB
  • Signal processing: 32/40-bit floating point
  • THD+N: < 0.002 %
  • Latency (analog in/out, 48 kHz / 96 kHz): < 0.45 ms / < 0.22 ms
  • Control ports: 8 GPIO
WARNING: This product may expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
  • Height
    6 in
  • Length
    24 in
  • Width
    24 in
  • Weight
    18 lb
  • Depth
    19.01 in
