DBX  |  SKU: ZC-8

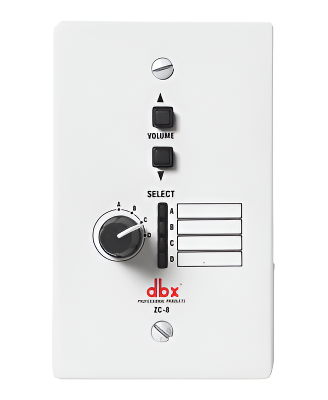

ZC8 Volume and Source Controller

$11000

✅ In stock — usually ships the same day!

Description

The Zone Controllers offer extended utility to the DriveRack® and ZonePRO™ families. The nine Zone Controllers use analog DC voltage to provide logic control ranging from zone source selection, volume and muting to program or scene selection and fire safety muting. Wired with readily available and affordable CAT5 cable with universally accepted RJ-45 connectors at distances up to 1000 ft, the ZC Zone Controllers offer simple yet elegant solutions to the contractor.

The ZC-8 provides both programmable source selection and volume control to ZonePRO devices.



Product Feature

Volume and Source Selector for the ZonePRO products.

Single Gang Mounting

(2) RJ-45 on Back

Series Wiring - Maximum Cable Length varies with number of Zone Controllers. Example: Three Zone Controllers: 600 ft. Six Zone Controllers: 300 ft.

Parallel Wiring using ZC-BOB Up to Six Zone Controllers: 1000 ft.

Parallel Wiring Cable CAT5 or CAT5E

WARNING: This product may expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
  • Height
    5.5 in
  • Length
    7 in
  • Width
    3.5 in
  • Weight
    8 lb
