Pulse Audio  |  SKU: PAV1100

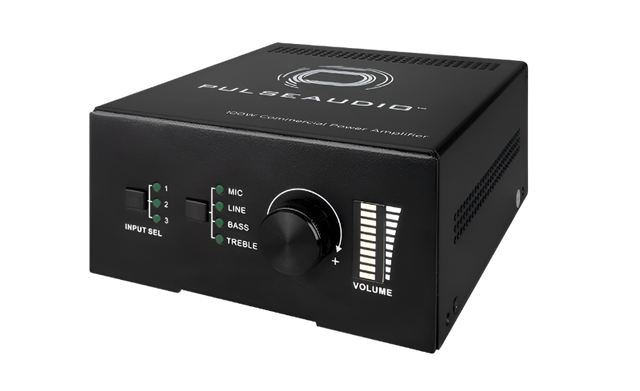

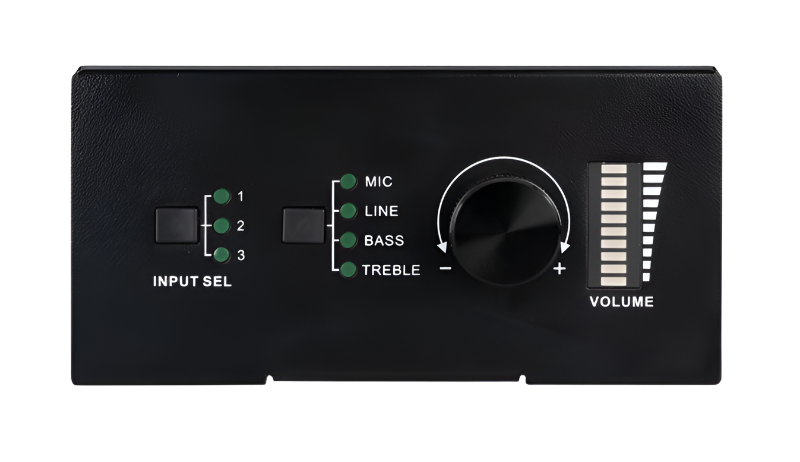

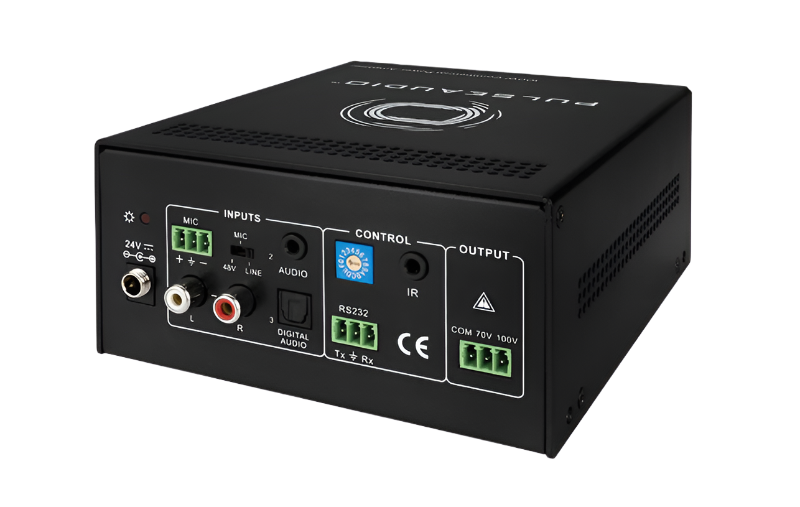

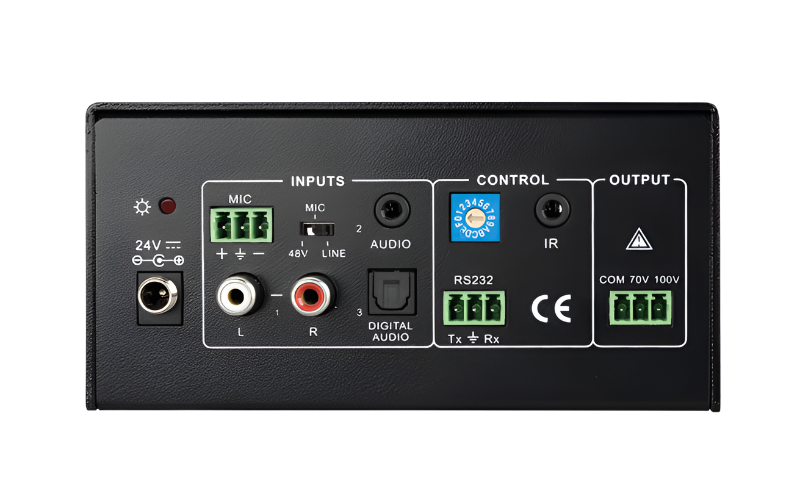

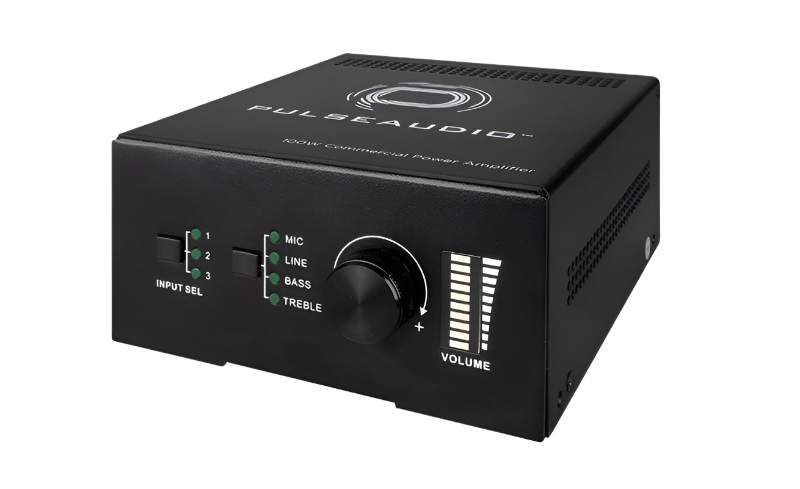

PAV1100 Single Channel 100w 70/100 Volt Amplifier w/Mic Input

$94699

🚚 Out of stock — usually ships in 5–7 business days.

Description

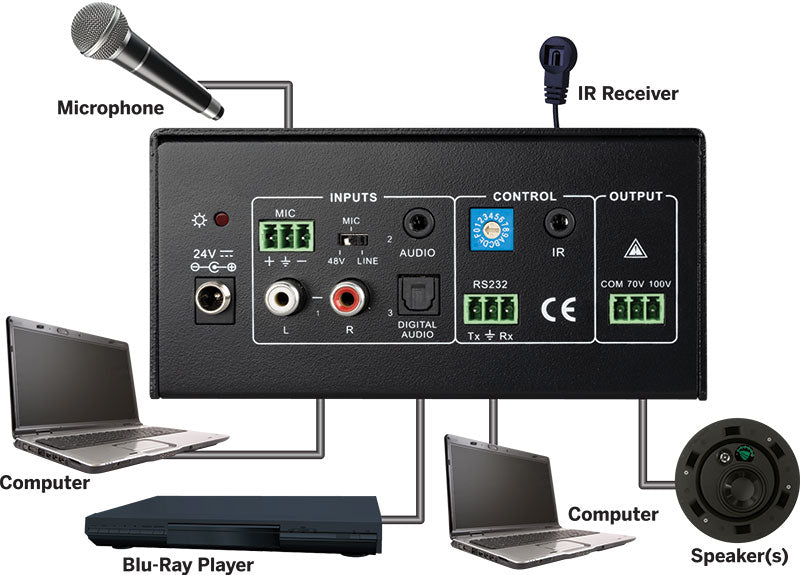

The Pulse Audio PAV1100 is a 100 Watt Class-D power amplifier with output alternatively at 70V or 100V. Featuring stereo inputs (a 3.5mm jack for line in and two RCA for L&R audio), one digital input and a balanced MIC input. Also features mic ducking functionality, EQ control, and mic mixing.

Product Feature
  • Mono audio output at 100W
  • Switchable between 70V and 100V
  • Sixteen ID codes for controlling multiple PAV1100 amplifiers in a system
  • 3-level MIC input, supports condenser microphone, dynamic microphone and wireless microphone, with ducking or mixing function
  • MIC input supports balanced/unbalanced signal, and suppresses external noise effectively
  • One 2-channel analog audio inputs and one digital audio input, switchable by button, IR remote & RS232
  • Manual volume control
  • Bass/Treble controllable via front panel, IR remote & RS232
  • Convection cooled, no external fan needed
  • LED indicator, for power and working status
  • Anti-static case design

In the Box

• PAV1100 Amplifier
• (2) Mounting ears with included screws
• (4) Plastic feet
• (2) Pluggable terminal blocks
• (1) RS-232 cable
• (1) DC 24V 5A power adapter
• Product Manual

WARNING: This product may expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
  • Height
    2.5 in
  • Length
    5.9 in
  • Width
    5.11 in
