RDL  |  SKU: TX-J2

TX-J2 Unbalanced Input Transformer

$8396

🚚 Out of stock — usually ships in 5–7 business days.

Description

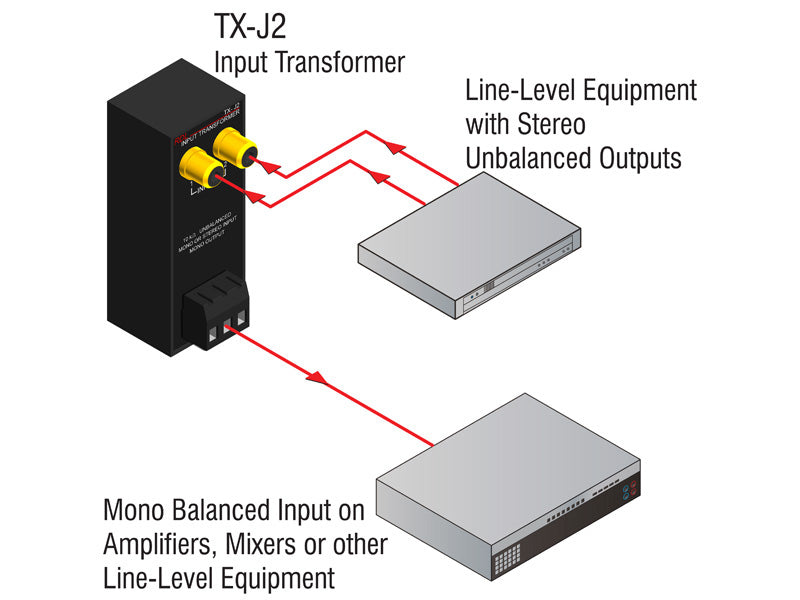

The TX-J2 is the ideal choice in installations requiring the passive mixing of two unbalanced line-level audio sources to feed a balanced (or unbalanced) audio output. The

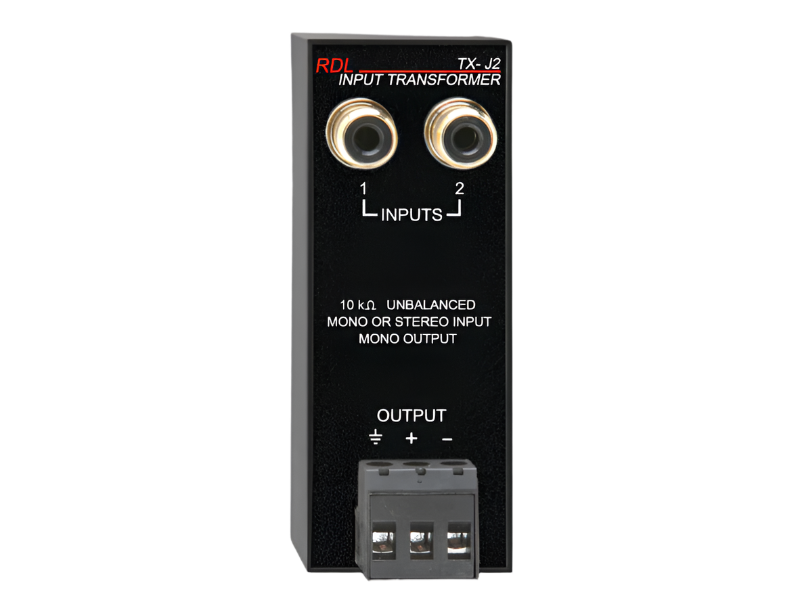

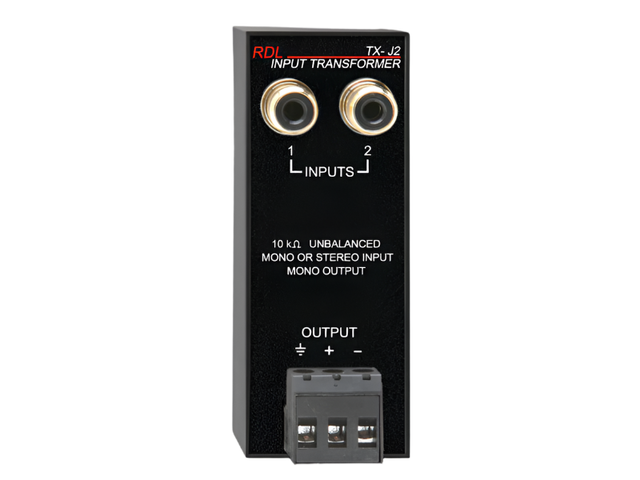

TX-J2 is a complete unbalanced line-level audio input module. The front panel features two gold plated phono jacks, intended for mono or stereo consumer level sources. Inputs 1 and 2 are combined and balanced through audio transformers configured to reject induced hum. The line-level output is provided on the front-panel detachable terminal block for connection to 10 kΩ or higher input impedance line-level module or equipment inputs.



Product Feature

Mix two unbalanced audio signals to mono balanced

Combine stereo into mono with balanced output

Unbalanced to balanced conversion without gain

Hum cancellation on unbalanced line inputs

Frequency response 30 Hz to 20 kHz (+/- 1 dB)

WARNING: This product may expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
  • Height
    2 in
  • Width
    4 in
  • Depth
    2 in
