TOA  |  SKU: M-41S

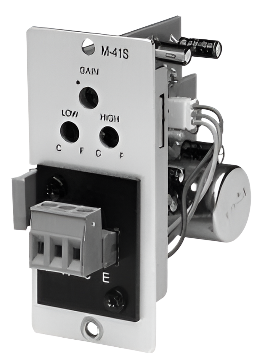

M41S Microphone Input with Mute-Send

$14700

✅ In stock — usually ships the same day!

Description

The TOA M-41S is a microphone module to be used in conjunction with the 900 series or AX-1000 amplifier. The M-41S has a phantom power supply and a 600 Ω balanced input. The module also has a voice-activated muting control output.

Product Feature
  • For Balanced, Low Impedance Microphones.
  • High and Low Cut Filters for tone control, 4.2 kHz and 330 Hz, 6 dB/octave.
  • Phantom Power, +22 VDC for condenser-type microphones. Active by default, cut Jumper J1 to disable.
  • Signal At Input Terminals Activates Both Mute Bus # 1 and Mute Bus # 2 by Default (cut jumper(s) to disconnect individual mute bus).
  • Connector: removable terminal block (M-41S)
WARNING: This product may expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
  • Height
    1 in
  • Length
    12 in
  • Width
    10 in
  • Weight
    1 lb
