Audix  |  SKU: ADS48

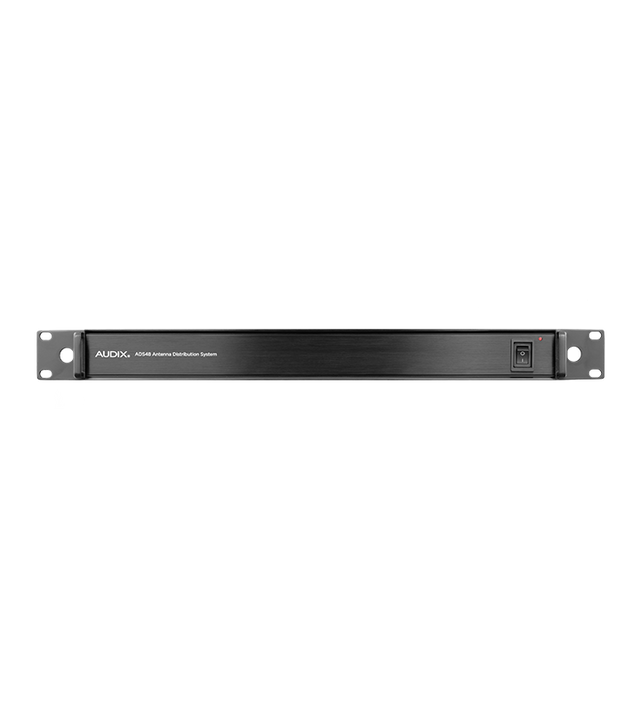

ADS48 Antenna Distribution System - Wireless Microphone Accessory

$83900

🚚 Out of stock — usually ships in 5–7 business days.

Description

The Audix ADS48 is a wide-range UHF antenna distribution system that combines up to four wireless systems to be able to run off a single pair of antennas and power supply. The ADS48 has an internal switching power supply, which eliminates the need for the individual DC power supplies normally needed for each receiver. RF signals are internally amplified in order to compensate for any loss that may result from splitting the signal.

When used in conjunction with the AP42 or AP62 two-channel systems, the ADS48 is able to run 8 channels of wireless on a single pair of antennas, and the power supply takes up only 5 rack spaces.



Product Feature

Frequency Range:  470 - 900 MHz

RF Output Level (Gain):  0 dB d + or – 3 dB

Input Impedance: 50 Ohm

Output Impedance: 50 Ohm

Power Voltage: 100 – 240 V AC 50 / 60 Hz

Output DC Voltage: +12 V DC, 800 mA maximum

Antenna Input DC Voltage: 8 V, 150 mA maximum

WARNING: This product may expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
  • Height
    6 in
  • Length
    24 in
  • Width
    16 in
  • Weight
    2 lb
